Description:Output Current in Excess of 800 mA; 1.0 V Dropout; Short Circuit Protection; Output Trimmed to 1.0% Tolerance; Thermal Protection; 3.3 V, 5.0 V, 12 V and Adjustable Versions 2.85 V version available as MC34268.; Space Saving DPAK, SOP-8 and SOT-223 Power Packages; Pb-Free Packages are Available
A good PCB layout for the MC33269D-5.0G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the input and output capacitors should be selected based on the specific application requirements, and the device should be operated within its recommended operating conditions.
The MC33269D-5.0G is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to consult the datasheet and perform thermal analysis to ensure the device operates within its recommended temperature range.
Yes, the MC33269D-5.0G is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to consult the datasheet and follow the recommended design guidelines to ensure the device meets the specific application requirements.
To troubleshoot issues with the MC33269D-5.0G, start by verifying the device's input and output voltages, and checking for any signs of overheating. Next, review the PCB layout and component selection to ensure they meet the recommended guidelines. If the issue persists, consult the datasheet and application notes for troubleshooting guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33269D-5.0G Overview

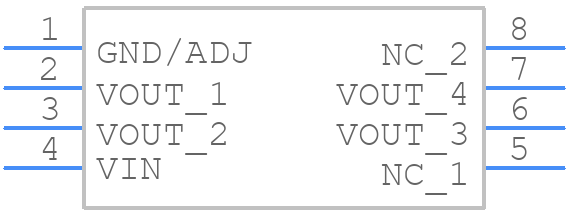

Use the download button to access the MC33269D-5.0G schematic symbol, PCB footprint, and 3D model.
