Description:Output Current in Excess of 800 mA; 1.0 V Dropout; Short Circuit Protection; Output Trimmed to 1.0% Tolerance; Thermal Protection; 3.3 V, 5.0 V, 12 V and Adjustable Versions 2.85 V version available as MC34268.; Space Saving DPAK, SOP-8 and SOT-223 Power Packages; Pb-Free Packages are Available
A good PCB layout for the MC33269DR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
The inductor value depends on the input voltage, output voltage, and switching frequency. A general rule of thumb is to choose an inductor with a value between 1-10 μH. A higher inductor value can reduce the ripple current, but may increase the size and cost of the inductor. It's recommended to use the inductor selection guide provided by onsemi or to consult with an application engineer.
The MC33269DR2G is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system. It's recommended to consult with an application engineer or to perform thermal simulations to determine the maximum ambient temperature range for a specific application.
To ensure stability, it's recommended to follow the compensation network guidelines provided in the datasheet. Additionally, the output capacitor should be chosen to ensure a stable output voltage, and the input capacitor should be chosen to filter out high-frequency noise. It's also recommended to use a low-ESR output capacitor and to minimize the output capacitor's equivalent series resistance (ESR).
The MC33269DR2G is rated for a maximum output current of 3 A. However, the actual output current capability may be limited by the thermal design of the system, the input voltage, and the output voltage. It's recommended to consult with an application engineer or to perform thermal simulations to determine the maximum output current capability for a specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33269DR2G Overview

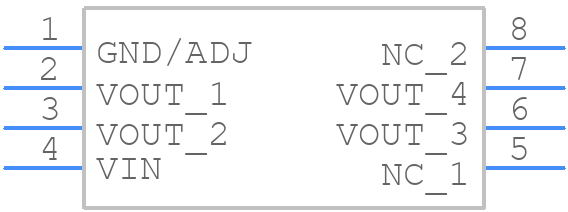

Use the download button to access the MC33269DR2G schematic symbol, PCB footprint, and 3D model.
