A good PCB layout for the MC33269DG involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet. Additionally, consider the inductor's saturation current, DC resistance, and core material when selecting an inductor.
The MC33269DG is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
Yes, the MC33269DG can be used in a synchronous rectification configuration. However, this requires additional external components and careful design consideration to ensure proper operation and minimize power losses.
To troubleshoot issues with the MC33269DG, start by verifying the PCB layout and component selection. Check for proper decoupling, input and output capacitor selection, and inductor value. Use an oscilloscope to measure the input and output waveforms, and check for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33269DG Overview

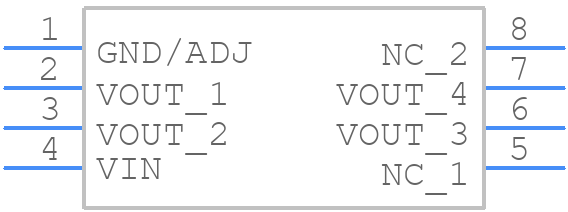

Use the download button to access the MC33269DG schematic symbol, PCB footprint, and 3D model.
