A good thermal design involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path short. A 4-layer PCB with a dedicated thermal layer is recommended. Refer to onsemi's application note AND8031/D for more details.
To ensure reliable operation, follow the recommended operating conditions, use a heat sink if necessary, and consider derating the output current at high temperatures. Also, ensure the PCB is designed to handle thermal stresses and use components with high temperature ratings.
The maximum capacitive load is not explicitly stated in the datasheet, but as a general rule, it's recommended to limit the output capacitance to 10uF or less to prevent oscillations and ensure stability.
While the MC33375D-5.0R2G is a linear regulator, it's not recommended for switching regulator applications due to its limited bandwidth and lack of switching capabilities. Instead, consider using a dedicated switching regulator IC from onsemi's portfolio.
To troubleshoot output voltage instability or oscillations, check the input voltage, output capacitance, and PCB layout. Ensure the input voltage is within the recommended range, the output capacitance is within the recommended limit, and the PCB layout is optimized for thermal performance and minimal noise coupling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33375D-5.0R2G Overview

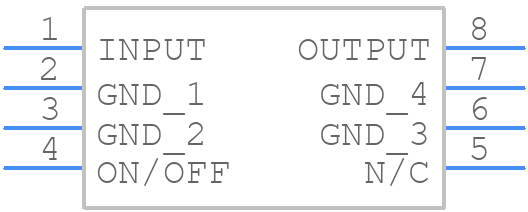

Use the download button to access the MC33375D-5.0R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC333,
or try a keyword search, such as Linear Regulator ICs
