MC33660BEF - NXP

Description: Interface - Specialized Transceiver, Physical layer, ISO9141 K Line Serial Link Interface, SOIC 8

Download MC33660BEF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

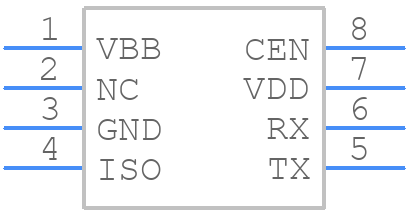

MC33660BEF - NXP - PCB symbol
click to zoom
PCB Footprints
MC33660BEF - NXP PCB footprint - Small Outline Packages - Small Outline Packages - 8 - SOIC
click to zoom
3D Models
MC33660BEF - NXP - 3D model - Small Outline Packages - 8 - SOIC
click to zoom

MC33660BEF Details

  • Manufacturer Part Number:

    MC33660BEF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-012AA, SOICN-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    1

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

MC33660BEF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and wide, and use thermal vias to dissipate heat. Refer to the NXP application note AN4868 for more details.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (e.g., 1-10 μH). Consider the peak current, switching frequency, and output voltage when selecting the inductor. Refer to the NXP application note AN4868 for inductor selection guidelines.
  • The maximum ambient temperature for the MC33660BEF is 105°C. However, the device can operate up to 150°C junction temperature. Ensure proper thermal design and heat dissipation to prevent overheating.
  • Use the OCSET pin to set the overcurrent threshold. Connect a resistor (Rocset) between the OCSET pin and the output voltage (Vout). The overcurrent threshold is calculated as Vout / Rocset. Use a suitable value for Rocset to set the desired overcurrent threshold.
  • Yes, the MC33660BEF can be used in a synchronous rectification configuration. This can improve efficiency and reduce power losses. However, ensure proper design and layout to minimize parasitic inductance and capacitance.
