MC33771CTP2AE - NXP

Description: Battery Management Battery Cell Controller, Premium, 8 Channels, TPL, LQFP64

Download MC33771CTP2AE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC33771CTP2AE - NXP - PCB symbol
click to zoom
PCB Footprints

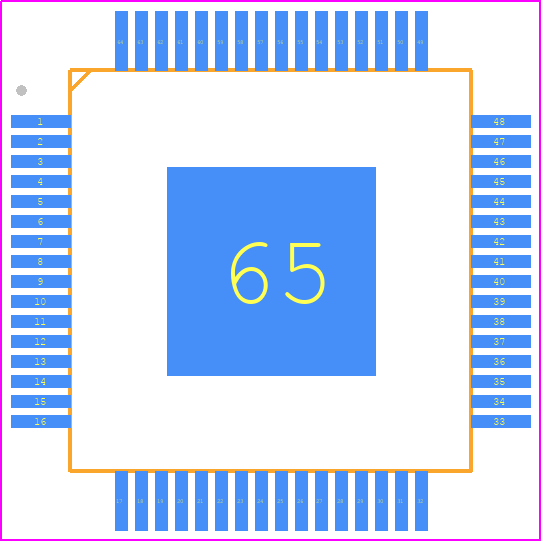

MC33771CTP2AE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT1510-2_2024
click to zoom
3D Models
MC33771CTP2AE - NXP - 3D model - Quad Flat Packages - SOT1510-2_2024
click to zoom

MC33771CTP2AE Details

  • Manufacturer Part Number:

    MC33771CTP2AE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-64

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • JESD-30 Code:

    R-PQFP-G64

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQFP

  • Package Equivalence Code:

    QFP64(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    61.6 V

  • Supply Voltage-Min (Vsup):

    9.6 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

MC33771CTP2AE Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN4365, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The MC33771CTP2AE is a flexible battery charger IC that can be configured for various battery chemistries using external resistors and capacitors. NXP provides a battery configuration guide in the application note AN4364, which includes tables and equations to help designers calculate the required component values for their specific battery chemistry.
  • The MC33771CTP2AE is rated for operation in an ambient temperature range of -40°C to +85°C. However, the device's performance and reliability may be affected at extreme temperatures, and designers should consider thermal management and derating factors in their design.
  • The MC33771CTP2AE is designed for battery charging applications up to 28V. While it can tolerate some voltage transients, it is not recommended for high-voltage applications above 30V. Designers should consider using voltage protection devices or other safety measures to prevent damage to the IC and ensure safe operation.
  • NXP provides a troubleshooting guide in the application note AN4366, which includes a step-by-step approach to identifying and resolving common issues with the MC33771CTP2AE. Designers can also use the IC's built-in diagnostic features, such as the FAULT pin and the I2C interface, to monitor the device's status and debug their design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33771CTP2AE Overview

Use the download button to access the MC33771CTP2AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC337, or try a keyword search, such as Power Management Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
