MC33772CTP1AE - NXP

Description: Battery Management Battery Cell Controller, Premium, 6 Channels, TPL, LQFP48

Download MC33772CTP1AE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

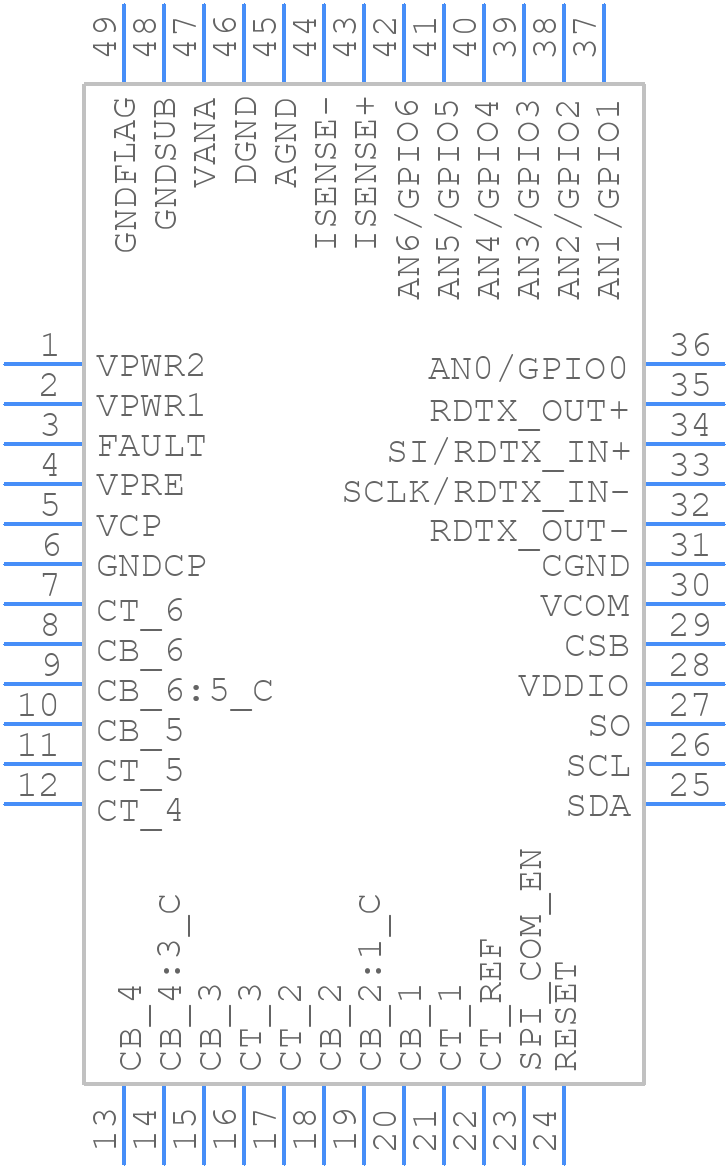

MC33772CTP1AE - NXP - PCB symbol
click to zoom
PCB Footprints
MC33772CTP1AE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT1571-1-2
click to zoom
3D Models
MC33772CTP1AE - NXP - 3D model - Quad Flat Packages - SOT1571-1-2
click to zoom

MC33772CTP1AE Details

  • Manufacturer Part Number:

    MC33772CTP1AE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    14

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • JESD-30 Code:

    R-PQFP-G48

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQFP

  • Package Equivalence Code:

    QFP48(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

MC33772CTP1AE Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33772CTP1AE involves keeping the power traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The inductor value for the MC33772CTP1AE depends on the input voltage, output voltage, and output current. A good starting point is to use the inductor value calculation formula provided in the datasheet, and then adjust based on the specific application requirements.
  • The MC33772CTP1AE has an operating ambient temperature range of -40°C to 125°C. However, the device can be operated at a higher temperature range with derating, but this should be done with caution and careful thermal management.
  • Proper thermal management for the MC33772CTP1AE involves using a heat sink, applying thermal interface material, and ensuring good airflow around the device. The thermal resistance of the device should be minimized by using a heat sink with a low thermal resistance.
  • When using the MC33772CTP1AE, key considerations for EMI filtering include using a common-mode choke, adding a pi-filter, and using a shielded inductor. The layout of the PCB should also be optimized to minimize EMI radiation.
