MC33772CTP2AE - NXP

Description: Battery Management Battery Cell Controller, Premium, 4 Channels, TPL, LQFP48

Download MC33772CTP2AE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

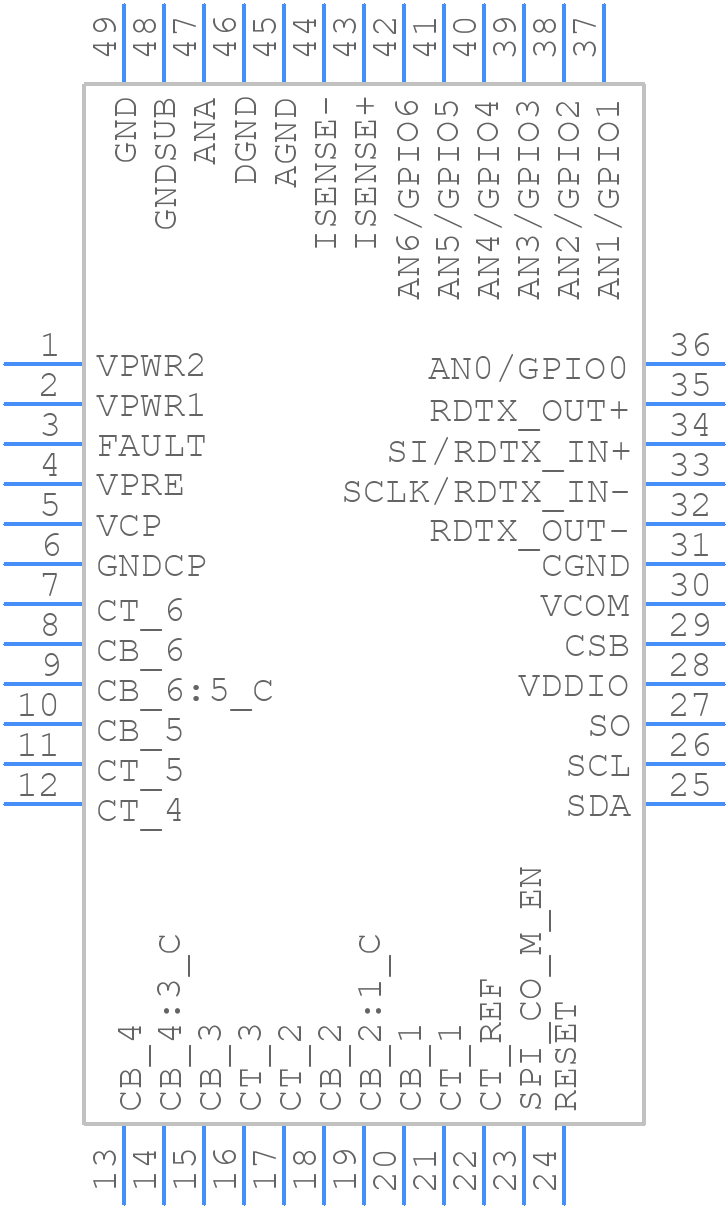

MC33772CTP2AE - NXP - PCB symbol
click to zoom
PCB Footprints
MC33772CTP2AE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - HLQFP48, plastic, thermal enhanced low profile quad flat package; 48 terminals; 0.5 mm pitch; 7 mm x 7
click to zoom
3D Models
MC33772CTP2AE - NXP - 3D model - Quad Flat Packages - HLQFP48, plastic, thermal enhanced low profile quad flat package; 48 terminals; 0.5 mm pitch; 7 mm x 7
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for MC33772CTP2AE
  • Part Number MC33772CTP2AE
  • Manufacturer NXP
  • Pin Count 49
  • Part Category Integrated Circuit
  • Package Category Quad Flat Packages
  • Footprint Name Quad Flat Packages - HLQFP48, plastic, thermal enhanced low profile quad flat package; 48 terminals; 0.5 mm pitch; 7 mm x 7
  • Released Date Mar 28, 2023
  • Last Modified Date Mar 28, 2023 6:37 AM UTC
  • Pinout / Pin List Click Here (Member Only)

MC33772CTP2AE Details

  • Manufacturer Part Number:

    MC33772CTP2AE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    14

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • JESD-30 Code:

    R-PQFP-G48

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQFP

  • Package Equivalence Code:

    QFP48(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

MC33772CTP2AE Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33772CTP2AE involves keeping the power traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The inductor value for the MC33772CTP2AE depends on the input voltage, output voltage, and output current. A good starting point is to use the inductor value calculation formula provided in the datasheet, and then adjust based on the specific application requirements.
  • The MC33772CTP2AE has an operating ambient temperature range of -40°C to 125°C, but the maximum junction temperature is 150°C. It's essential to ensure proper thermal management to prevent overheating.
  • Yes, the MC33772CTP2AE is suitable for high-reliability applications. It's manufactured using a robust process, and NXP Semiconductors provides a detailed reliability report. However, it's essential to follow proper design and manufacturing guidelines to ensure the device meets the required reliability standards.
  • To troubleshoot issues with the MC33772CTP2AE, start by checking the power supply, input voltage, and output voltage. Verify that the device is properly configured and that the PCB layout is correct. Use an oscilloscope to check for voltage spikes, ringing, or other anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33772CTP2AE Overview

Use the download button to access the MC33772CTP2AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC337, or try a keyword search, such as Power Management Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
