MC33774ASP1AE - NXP

MC33774ASP1AE Details

• Manufacturer Part Number:

  MC33774ASP1AE

• Part Life Cycle Code:

  Active

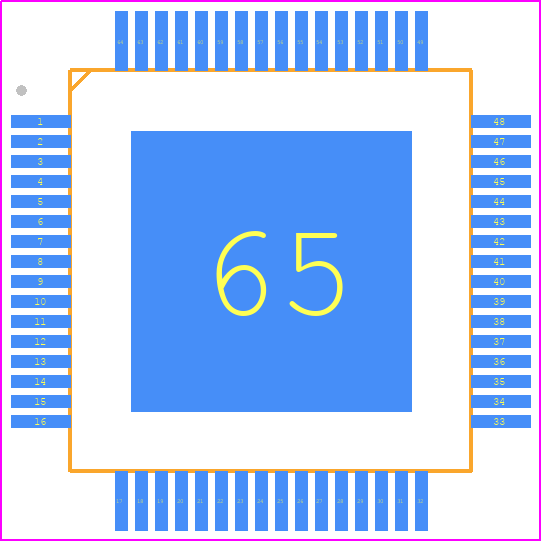

• Package Description:

  LQFP-64

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  13

• Additional Feature:

  CASCADE FUNCTION:N; CTL:N; INTEGRATED MOSFET:N; PS:N

• Adjustable Threshold:

  NO

• Analog IC - Other Type:

  BATTERY MONITOR

• JESD-30 Code:

  S-PQFP-G64

• Length:

  10 mm

• Moisture Sensitivity Level:

  3

• Number of Channels:

  18

• Number of Functions:

  1

• Number of Terminals:

  64

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Equivalence Code:

  HQFP64,.47SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100, ASIL D

• Seated Height-Max:

  1.6 mm

• Supply Current-Max (Isup):

  14.9 mA

• Supply Voltage-Max (Vsup):

  90 V

• Supply Voltage-Min (Vsup):

  9 V

• Supply Voltage-Nom (Vsup):

  72 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  10 mm
