MC33814AE - NXP

Description: High Performance Gate Driver IC Two cylinder small engine control IC

Download MC33814AE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

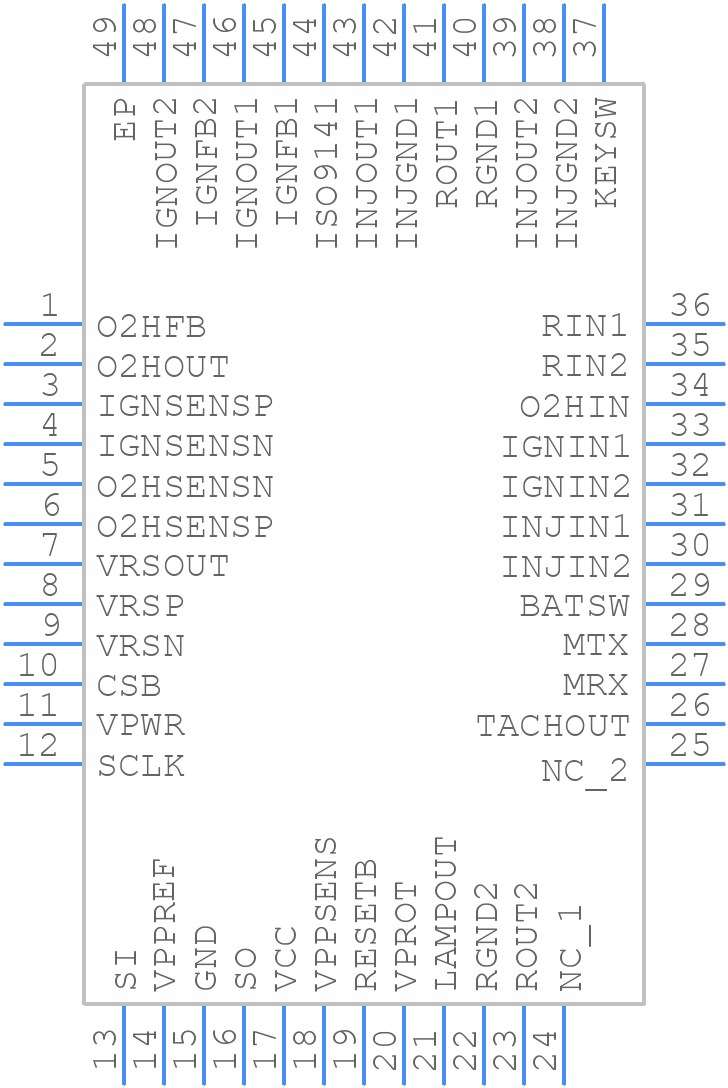

Symbol
MC33814AE - NXP - PCB symbol
click to zoom
PCB Footprints
MC33814AE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - MC33813AER2--+
click to zoom
3D Models
MC33814AE - NXP - 3D model - Quad Flat Packages - MC33813AER2--+
click to zoom

MC33814AE Details

  • Manufacturer Part Number:

    MC33814AE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

MC33814AE Frequently Asked Questions (FAQs)

  • The maximum current rating of the MC33814AE is 3.5A per channel, with a maximum total current of 7A.
  • To configure the MC33814AE for low-power mode, set the EN pin low and the STBY pin high. This will reduce the quiescent current to approximately 10uA.
  • The FAULT pin is an open-drain output that indicates a fault condition, such as overcurrent, overtemperature, or undervoltage. It can be used to trigger an interrupt or reset the system.
  • Yes, the MC33814AE can operate with a 5V power supply, but the maximum output current will be limited to 2.5A per channel. For higher current applications, a 6V or higher power supply is recommended.
  • The current limit on the MC33814AE can be adjusted by connecting a resistor between the ILIM pin and ground. The current limit is inversely proportional to the resistance value.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33814AE Overview

Use the download button to access the MC33814AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC338, or try a keyword search, such as Other Signal Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
