MC33932EK - NXP

Description: Motor Driver CMOS Parallel 54-SOIC-EP , 5V ~ 28V , −40 °C to 125 °C

Download MC33932EK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC33932EK - NXP - PCB symbol
click to zoom
PCB Footprints

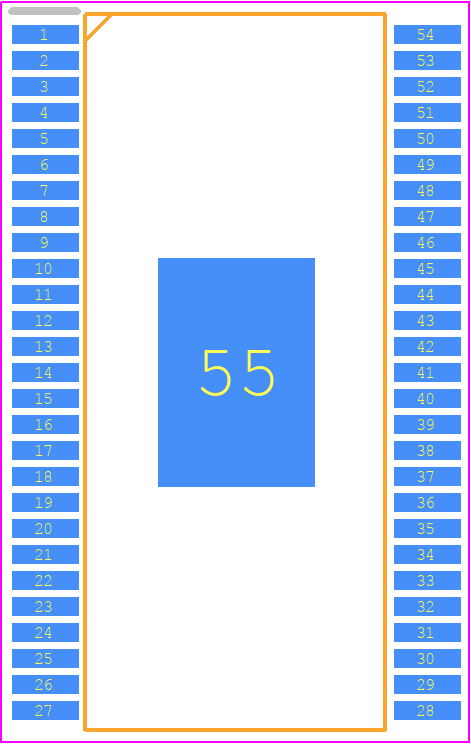

MC33932EK - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT1747-4
click to zoom
3D Models
MC33932EK - NXP - 3D model - Small Outline Packages - SOT1747-4
click to zoom

MC33932EK Details

  • Manufacturer Part Number:

    MC33932EK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

MC33932EK Frequently Asked Questions (FAQs)

  • The maximum current rating of the MC33932EK is 5A per channel, with a maximum total current of 10A.
  • The MC33932EK can be configured for high-side or low-side switching by connecting the appropriate pins to the load and power supply. Refer to the application note AN4836 for detailed configuration guidelines.
  • The EN (Enable) pin is used to enable or disable the H-bridge outputs. When EN is high, the outputs are enabled, and when EN is low, the outputs are disabled.
  • The MC33932EK has built-in overcurrent protection and thermal shutdown features. Additionally, external protection circuits can be implemented to provide additional protection against overcurrent and overheating.
  • The minimum input voltage required for the MC33932EK is 5.5V, with a recommended operating voltage range of 6V to 28V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33932EK Overview

Use the download button to access the MC33932EK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC339, or try a keyword search, such as Peripheral Drivers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
