MC33937APEKR2 - NXP

Description: Three phase field effect transistor pre-driver

Download MC33937APEKR2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC33937APEKR2 - NXP - PCB symbol
click to zoom
PCB Footprints

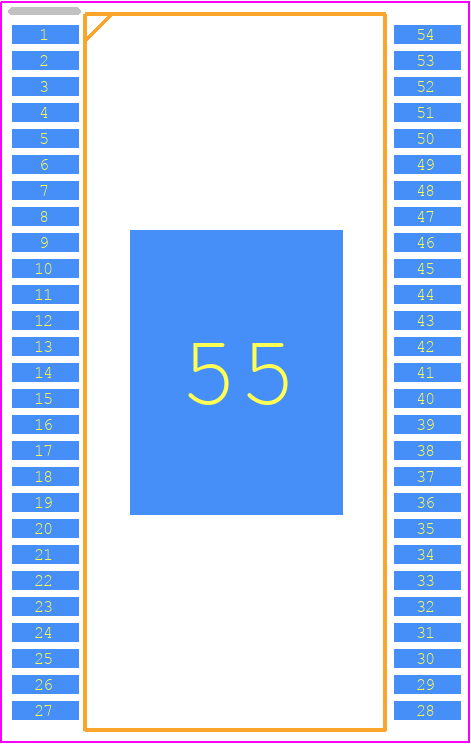

MC33937APEKR2 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - MC33937APEKR2
click to zoom
3D Models
MC33937APEKR2 - NXP - 3D model - Small Outline Packages - MC33937APEKR2
click to zoom

MC33937APEKR2 Details

  • Manufacturer Part Number:

    MC33937APEKR2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-54

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G54

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    54

  • Operating Temperature-Max:

    135 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP54,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max (Isup):

    95 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

MC33937APEKR2 Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the MC33937APEKR2 application note (AN4533) which includes guidelines for component placement, thermal management, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The MC33937APEKR2 has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured to enter a low-power state by setting the SLEEP pin high. The device will enter a low-power state when the SLEEP pin is high and the EN pin is low. The low-power mode can be exited by setting the EN pin high.
  • The maximum current rating for the MC33937APEKR2 is 5A per channel. However, the actual current rating may be limited by the PCB design, thermal management, and other system-level factors. It is recommended to consult the datasheet and application notes for more information on current rating and thermal management.
  • NXP provides a troubleshooting guide for the MC33937APEKR2 in the application note (AN4533) which includes steps for diagnosing and troubleshooting common issues such as overcurrent, overvoltage, and thermal shutdown. Additionally, NXP provides a debug tool, the MC33937APEKR2 Evaluation Board, which can be used to debug and troubleshoot the device.
  • Yes, the MC33937APEKR2 is AEC-Q100 qualified and is suitable for automotive applications. However, it is recommended to consult the datasheet and application notes for more information on the device's operating conditions, reliability, and compliance with automotive standards.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33937APEKR2 Overview

Use the download button to access the MC33937APEKR2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC339, or try a keyword search, such as Motion Control Electronics

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
