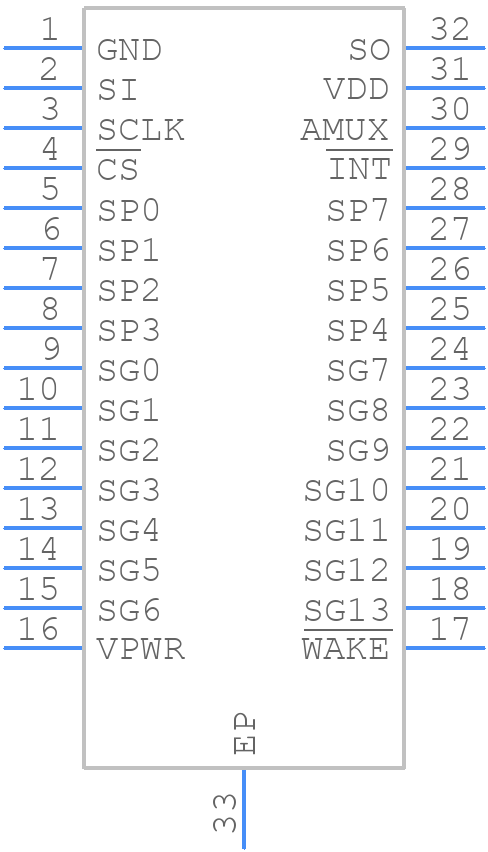

MC33975ATEK - NXP - PCB symbol
click to zoom
PCB Footprints

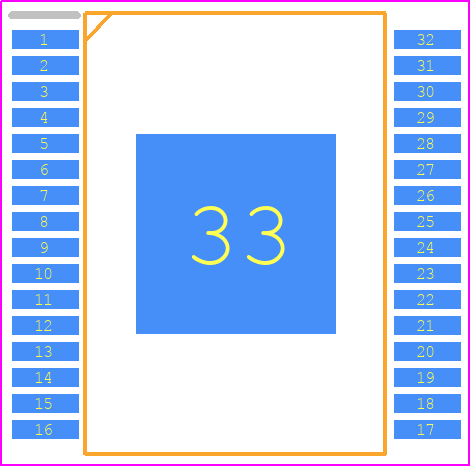

MC33975ATEK - NXP PCB footprint - Small Outline Packages - Small Outline Packages - 32-PIN EXPOSED PAD
click to zoom
3D Models
MC33975ATEK - NXP - 3D model - Small Outline Packages - 32-PIN EXPOSED PAD
click to zoom

MC33975ATEK Details

  • Manufacturer Part Number:

    MC33975ATEK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    0.65 PITCH, ROHS COMPLIANT, SOIC-32

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    SMARTMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

MC33975ATEK Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the MC33975ATEK application note (AN4533) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The MC33975ATEK has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device has a sleep mode that can be enabled by setting the SLEEP pin high. The device can also be configured to enter a low-power mode by setting the VREG pin to a lower voltage. Refer to the datasheet for more information on the specific pin configurations and voltage levels required.
  • The internal voltage regulator of the MC33975ATEK is capable of delivering up to 150mA of current. However, the maximum current rating depends on the input voltage, output voltage, and ambient temperature. Refer to the datasheet for more information on the specific current rating and thermal derating.
  • To troubleshoot issues with the internal voltage regulator, check the input voltage, output voltage, and current consumption. Ensure that the input voltage is within the recommended range and that the output voltage is within the specified tolerance. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown. Refer to the datasheet for more information on troubleshooting and fault detection.
  • Yes, the MC33975ATEK is AEC-Q100 qualified, which means it meets the requirements for automotive applications. However, it's essential to ensure that the device is used within the recommended operating conditions and that the system design meets the necessary safety and reliability standards for automotive applications.
