MC33978AEKR2 - NXP

Description: NXP - MC33978AEKR2 - SWITCH DETECTION INTERFACE, SPI, HSOIC32

Download MC33978AEKR2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

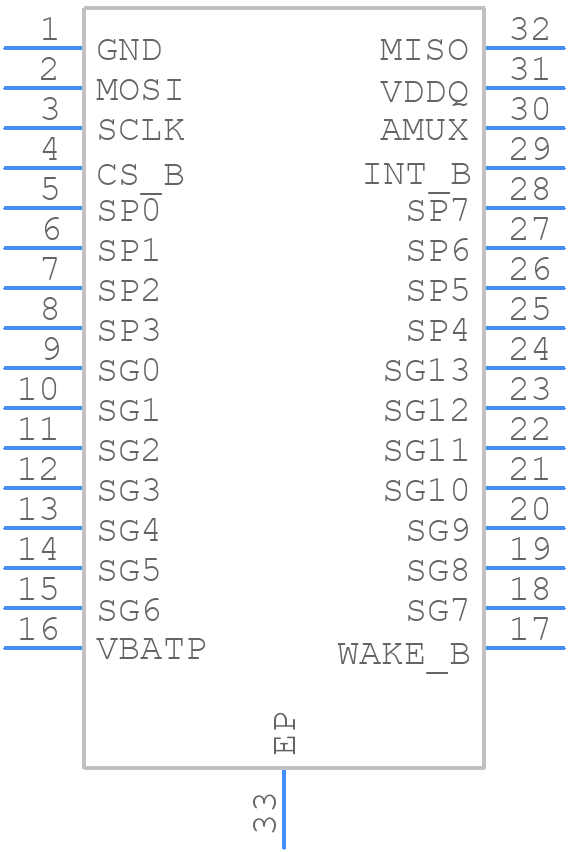

MC33978AEKR2 - NXP - PCB symbol
click to zoom
PCB Footprints

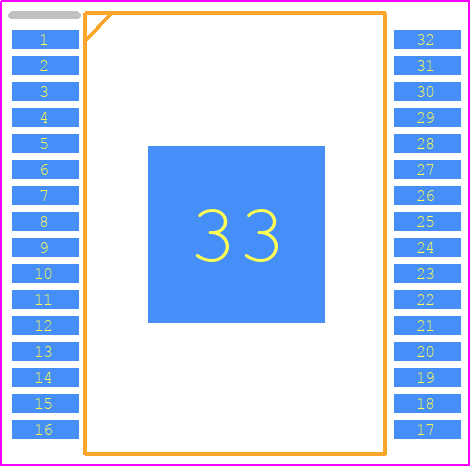

MC33978AEKR2 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - soic 33
click to zoom
3D Models
MC33978AEKR2 - NXP - 3D model - Small Outline Packages - soic 33
click to zoom

MC33978AEKR2 Details

  • Manufacturer Part Number:

    MC33978AEKR2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e3

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP32,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

MC33978AEKR2 Frequently Asked Questions (FAQs)

  • The maximum current rating of the MC33978AEKR2 is 2.5A per channel, with a maximum total current of 5A.
  • The MC33978AEKR2 can be configured for high-side or low-side switching by connecting the VCC pin to the desired voltage rail and configuring the EN pin accordingly. Refer to the application note AN4836 for more details.
  • The diagnostic pins (nD1 and nD2) on the MC33978AEKR2 provide fault detection and diagnostic capabilities, such as overcurrent, overtemperature, and undervoltage detection.
  • The MC33978AEKR2 has built-in overcurrent protection, which can be enabled by connecting a sense resistor to the IS pin. The device will limit the current to the programmed value when an overcurrent condition is detected.
  • The thermal resistance of the MC33978AEKR2 package is 25°C/W (junction-to-ambient) and 10°C/W (junction-to-case).
