A good PCB layout for the MC33CD1020AESR2 involves placing the device near the power source, using a solid ground plane, and keeping the input and output traces short and separate to minimize noise and EMI.
To ensure proper power-up and configuration, follow the recommended power-up sequence, connect the EN pin to a valid logic level, and configure the device using the I2C interface according to the datasheet.
The MC33CD1020AESR2 has a maximum junction temperature of 150°C. Ensure good thermal design practices, such as using a heat sink or thermal pad, to keep the device within the recommended operating temperature range.
To troubleshoot issues, check the power supply, clock, and reset signals. Verify the I2C communication and configuration. Use oscilloscopes or logic analyzers to debug the signals and identify the root cause of the issue.
Yes, follow proper EMI and EMC design practices, such as using shielding, filtering, and grounding techniques, to minimize electromagnetic interference and ensure compliance with regulatory standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33CD1020AESR2 Overview

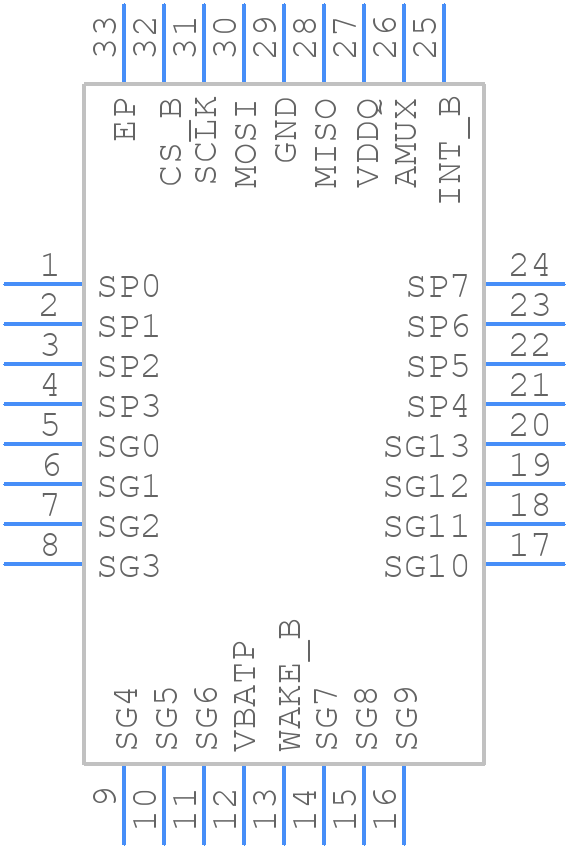

Use the download button to access the MC33CD1020AESR2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC33C,
or try a keyword search, such as Other Interface ICs
