- Stock & Prices $ Price & Stock for MC33FS4500CAE
- Part Number MC33FS4500CAE
- Manufacturer NXP
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - 48-pin LQFP-EP
- Released Date Feb 27, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC33FS4500CAE Details
-
Manufacturer Part Number:
MC33FS4500CAE
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LQFP-48
-
Country Of Origin:
Mainland China
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
10
-
JESD-30 Code:
S-PQFP-G48
-
Length:
7 mm
MC33FS4500CAE Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a common mode filter and a ferrite bead to reduce EMI.
-
The MC33FS4500CAE has a programmable gas gauge that can be configured for different battery chemistries using the NXP-provided software tools. The device also has a built-in battery model that can be customized for specific battery types.
-
The MC33FS4500CAE can support charging currents up to 3A, but the maximum current is dependent on the external components and the PCB design. It's recommended to follow the guidelines in the datasheet and application notes for optimal performance.
-
The MC33FS4500CAE has a built-in overcharge protection feature that can be enabled through the device's registers. The device can be configured to detect overcharge conditions and take action to prevent damage to the battery.
-
Yes, the MC33FS4500CAE can be used in a multi-cell battery configuration. The device has a built-in cell balancing feature that can be used to balance the state of charge of multiple cells in a battery pack.
Trust Checks
Community Provided
System Verified
Community Approved
MC33FS4500CAE Overview

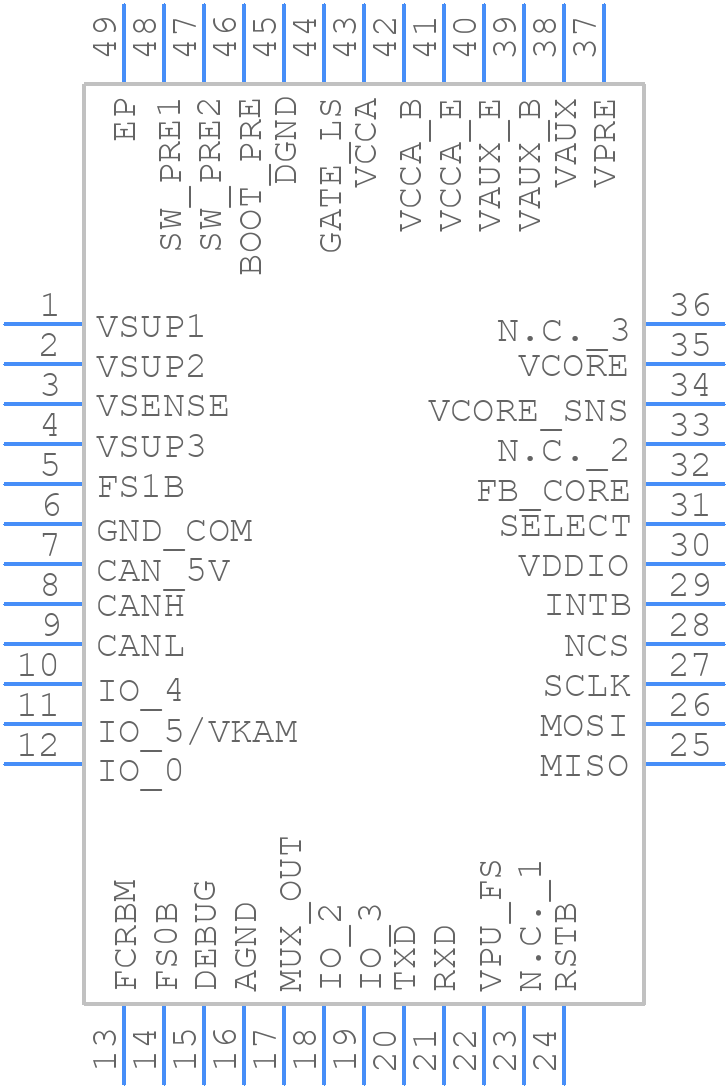

Use the download button to access the MC33FS4500CAE schematic symbol, PCB footprint, and 3D model.
