MC33FS4500LAE - NXP

Description: Power Management Specialized - PMIC System Basis Chip, Linear 0.5A Vcore, CAN, LIN, LQFP48EP

Download MC33FS4500LAE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

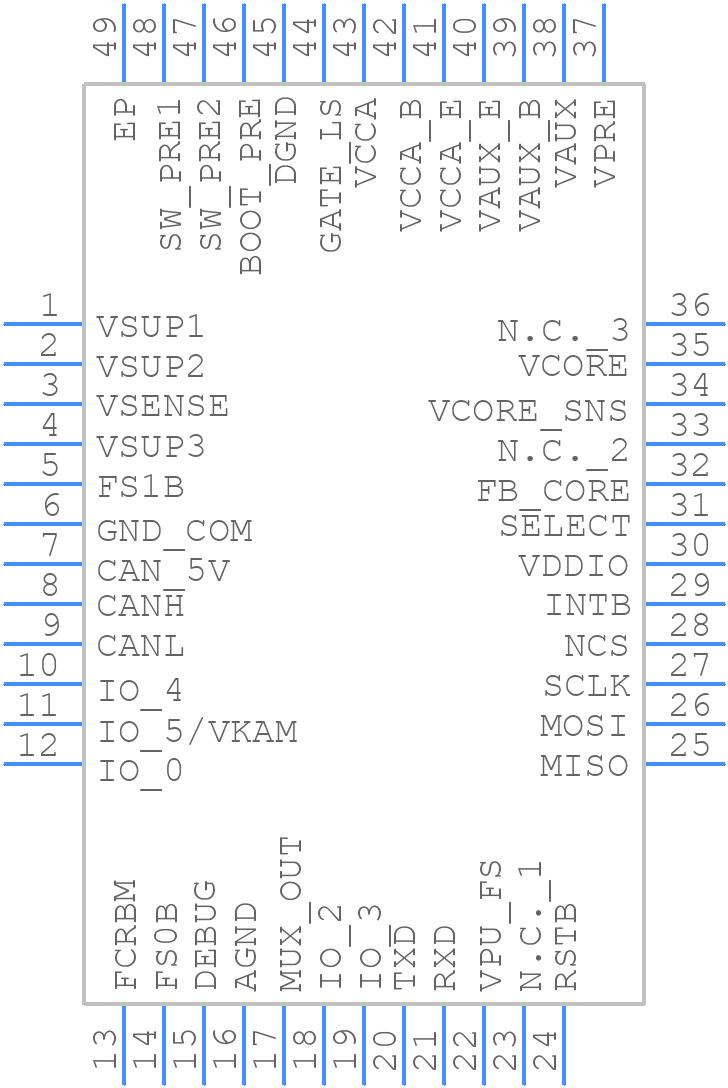

MC33FS4500LAE - NXP - PCB symbol
click to zoom
PCB Footprints
MC33FS4500LAE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT1571-1
click to zoom
3D Models
MC33FS4500LAE - NXP - 3D model - Quad Flat Packages - SOT1571-1
click to zoom

MC33FS4500LAE Details

  • Manufacturer Part Number:

    MC33FS4500LAE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    SMARTMOS

  • Telecom IC Type:

    CAN FD/LIN TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

MC33FS4500LAE Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout guide in the MC33FS4500LAE application note (AN12213) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The MC33FS4500LAE has multiple operating modes, including buck, boost, and buck-boost modes. Configuration is done through the device's registers, which can be accessed through the I2C interface. NXP provides a detailed register map and configuration guide in the device's datasheet and application notes.
  • While the datasheet specifies a maximum input voltage of 18V, it's essential to consider the device's absolute maximum ratings, which include a maximum input voltage of 20V. However, operating the device at this voltage may reduce its reliability and lifespan. It's recommended to operate the device within the recommended input voltage range of 4.5V to 18V for optimal performance and reliability.
  • To ensure EMC compliance, follow NXP's guidelines for PCB layout, component selection, and shielding. Additionally, perform EMC testing and certification according to relevant industry standards, such as CISPR 25 and IEC 62133. NXP provides EMC-related information and resources on their website.
  • The MC33FS4500LAE has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat efficiently. NXP recommends using thermal vias and a heat sink, if necessary, to keep the device's junction temperature within the recommended operating range.
