MC33FS6501CAER2 - NXP

Description: Power Management Specialised - PMIC System Basis Chip, DCDC 0.8A Vcore FS1B CAN, LQFP48EP

Download MC33FS6501CAER2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

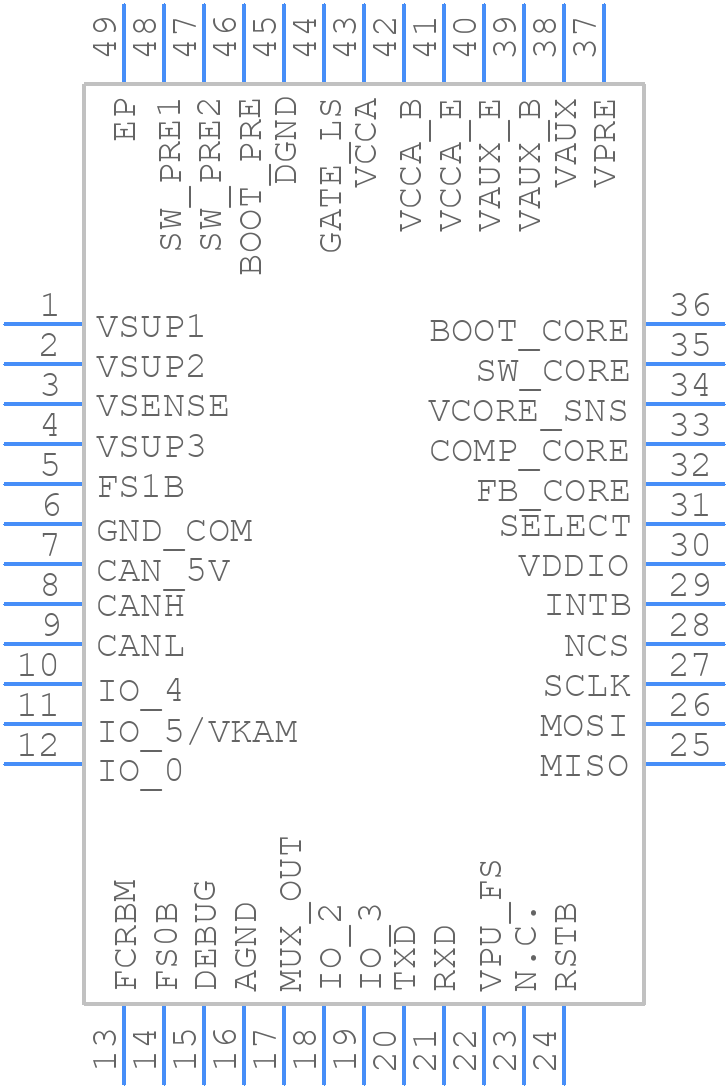

MC33FS6501CAER2 - NXP - PCB symbol
click to zoom
PCB Footprints
MC33FS6501CAER2 - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT1571-1-1
click to zoom
3D Models
MC33FS6501CAER2 - NXP - 3D model - Quad Flat Packages - SOT1571-1-1
click to zoom

MC33FS6501CAER2 Details

  • Manufacturer Part Number:

    MC33FS6501CAER2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    SMARTMOS

  • Telecom IC Type:

    CAN FD/LIN TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

MC33FS6501CAER2 Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN12085, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The MC33FS6501CAER2 can be configured for different operating modes using the SPI interface. NXP provides a detailed description of the configuration registers and commands in the datasheet and application notes. Additionally, NXP's FS6501 Configuration Tool can be used to simplify the configuration process.
  • The maximum current rating for the MC33FS6501CAER2 is 2.5A per channel, but this can be limited by the thermal performance of the PCB and the surrounding environment. NXP recommends following the thermal design guidelines in the application note AN12085 to ensure reliable operation.
  • NXP provides a troubleshooting guide in the application note AN12085, which includes common issues and their solutions. Additionally, NXP's technical support team can be contacted for further assistance.
  • Yes, the MC33FS6501CAER2 is designed to work with other NXP devices, such as microcontrollers and power management ICs. NXP provides a range of compatible devices and development boards that can be used to build complete systems.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33FS6501CAER2 Overview

Use the download button to access the MC33FS6501CAER2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC33F, or try a keyword search, such as Network Interfaces
