MC33FS6502LAE - NXP

Description: Power Management Specialized - PMIC System Basis Chip, DCDC 0.8A Vcore LDT CAN LIN, LQFP48EP

Download MC33FS6502LAE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

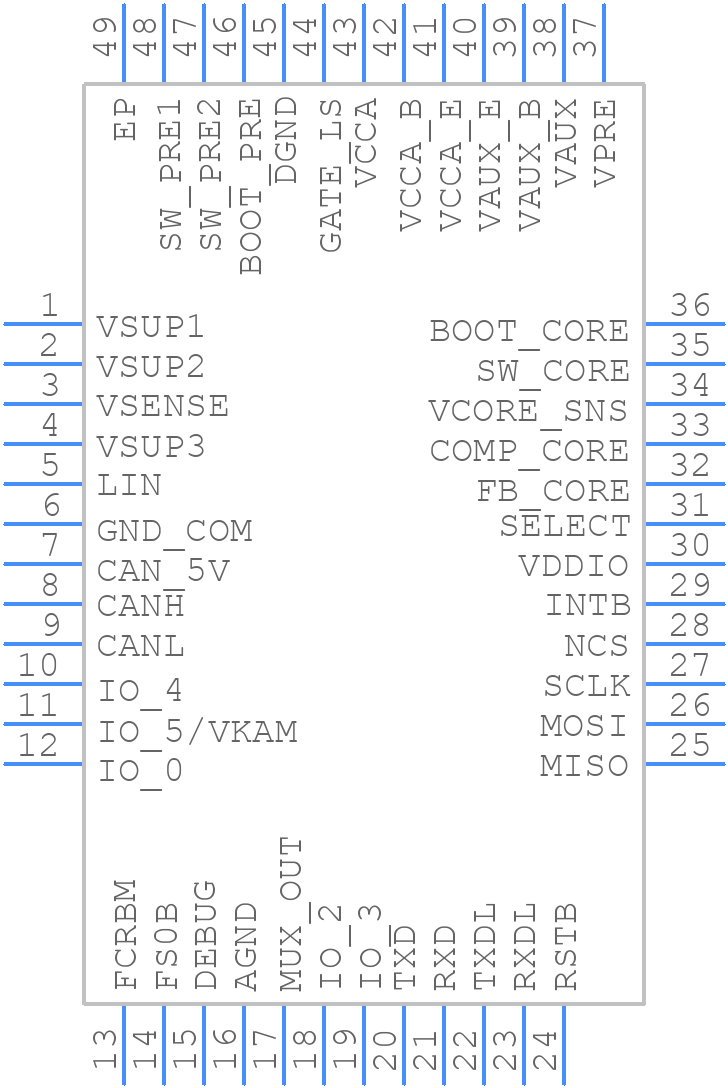

MC33FS6502LAE - NXP - PCB symbol
click to zoom
PCB Footprints
MC33FS6502LAE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-pin LQFP-EP
click to zoom
3D Models
MC33FS6502LAE - NXP - 3D model - Quad Flat Packages - 48-pin LQFP-EP
click to zoom

MC33FS6502LAE Details

  • Manufacturer Part Number:

    MC33FS6502LAE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    SMARTMOS

  • Telecom IC Type:

    CAN FD/LIN TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

MC33FS6502LAE Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC33FS6502LAE involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper configuration, carefully review the datasheet and application notes, and consult with NXP's technical support team if necessary. Additionally, use NXP's configuration tools and software development kits (SDKs) to simplify the configuration process.
  • The MC33FS6502LAE has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider using a heat sink or thermal interface material if necessary.
  • To troubleshoot issues, start by reviewing the datasheet and application notes, and checking the device's configuration and setup. Use debugging tools and software development kits (SDKs) to analyze the device's behavior and identify the root cause of the issue. Consult with NXP's technical support team if necessary.
  • To ensure EMI and EMC compliance, follow proper PCB layout and design guidelines, use shielding and filtering techniques, and consider using EMI-absorbing materials. Additionally, consult with NXP's technical support team and regulatory experts to ensure compliance with relevant standards and regulations.
