MC34064D-5R2G - onsemi

Description: Comparator Hysteresis Prevents Erratic Reset; Low Standby Current; Internal Clamp Diode for Discharging Delay Capacitor; Trimmed-In-Package Temperature Compensated Reference; Comparator Threshold of 4.6 V at 25° C; Guaranteed Reset Operation with 1.0 V Input; Economical TO-226AA, SO-8, Micro-8 and SOT-23/TSOP-5 Surface Mount Packages; Reset Output Capable of Sinking in Excess of 10 mA; Precise Comparator Thresholds Guaranteed Over Temperature; Pb-Free Packages are Available

Download MC34064D-5R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

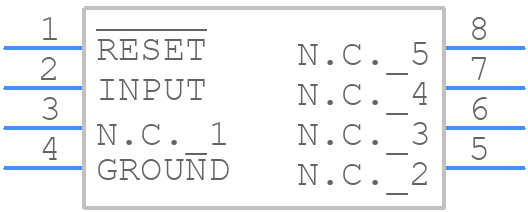

Symbol
MC34064D-5R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC34064D-5R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom
3D Models
MC34064D-5R2G - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom

MC34064D-5R2G Details

  • Manufacturer Part Number:

    MC34064D-5R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE DETECTOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    4 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.6V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC34064D-5R2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. Additionally, the output capacitor should be placed close to the output pin to minimize parasitic inductance.
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to derate the input voltage to 15V to ensure reliable operation and to prevent damage to the device.
  • The power dissipation of the device can be calculated using the formula: Pd = (Vin - Vout) x Iout. Where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
  • A ceramic capacitor with a value of 1-10uF and a voltage rating of 25V or higher is recommended for the input capacitor. The capacitor should be placed close to the input pin to minimize parasitic inductance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC34064D-5R2G Overview

Use the download button to access the MC34064D-5R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC340, or try a keyword search, such as Power Management Circuits
