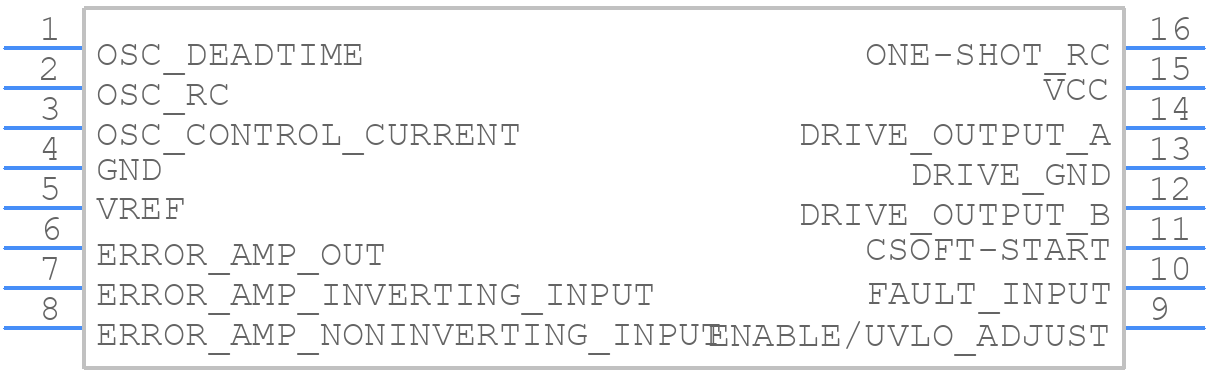

MC34066P - onsemi

MC34066P Details

• Manufacturer Part Number:

  MC34066P

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-16

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  onsemi

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Technique:

  RESONANT CONTROL

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  10 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e0

• Length:

  19.175 mm

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Output Current-Max:

  1.5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  235

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.44 mm

• Surface Mount:

  NO

• Switcher Configuration:

  PUSH-PULL

• Switching Frequency-Max:

  1150 kHz

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
