MC34119P - Motorola

Description: IC AMP CLASS AB MONO 400MW 8DIP

Download MC34119P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

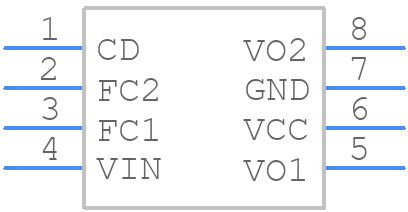

MC34119P - Motorola - PCB symbol
click to zoom
PCB Footprints
MC34119P - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P SUFFIX PLASTIC PACKAGE CASE 626–05 ISSUE K
click to zoom
3D Models
MC34119P - Motorola - 3D model - Dual-In-Line Packages - P SUFFIX PLASTIC PACKAGE CASE 626–05 ISSUE K
click to zoom

MC34119P Details

  • Manufacturer Part Number:

    MC34119P

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PLASTIC, DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Motorola Semiconductor Products

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.78 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Power-Nom:

    0.4 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MC34119P Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC34119P is 10.5V to 16V, with a typical voltage of 12V.
  • To ensure proper heat-sinking, use a heat sink with a thermal resistance of 1°C/W or less, and apply a thin layer of thermal interface material between the device and heat sink. The heat sink should be mounted to a metal plate or chassis to dissipate heat efficiently.
  • The maximum output current of the MC34119P is 1.5A per channel, with a total maximum output current of 3A for both channels.
  • To configure the MC34119P for a specific output voltage, use the voltage divider network consisting of R1, R2, and R3 resistors. The output voltage can be calculated using the formula: Vout = (R2 / R1) * (Vref - Vbe), where Vref is the internal reference voltage (2.5V) and Vbe is the base-emitter voltage of the internal transistor (approximately 0.7V).
  • The 'Sense' pins (SENSE1 and SENSE2) are used to monitor the output voltage of each channel. They can be connected to the output voltage lines to provide feedback to the internal error amplifier, ensuring accurate regulation of the output voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC34119P Overview

Use the download button to access the MC34119P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC341, or try a keyword search, such as Audio/Video Amplifiers
