Description:Comparator Hysteresis Prevents Erratic Reset; Reset Output Capable of Sinking in Excess of 6.0 mA; Internal Clamp Diode for Discharging Delay Capacitor; Temperature Compensated Reference; Economical TO-226AA, SO-8 and Micro-8 Surface Mount Packages; Guaranteed Reset Operation With 1.0 V Input; Monitors 3.0 V (MC34164-3) or 5.0 V (MC34164-5) Power Supplies; Extremely Low Standby Current: As Low as 9.0 µA; Precise Comparator Thresholds Guaranteed Over Temperature
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, make sure to follow the recommended operating conditions, use a suitable heat sink, and ensure good airflow around the device. Also, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
Exceeding the maximum junction temperature can lead to reduced reliability, decreased performance, and even permanent damage to the device. It can also cause the device to enter thermal shutdown, which can affect system performance.
To calculate the power dissipation of the device, you need to know the input voltage, output voltage, and output current. Use the formula: Pd = (Vin - Vout) x Iout, where Pd is the power dissipation, Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
To minimize EMI, use a good PCB layout, keep the input and output traces short, and use a common-mode choke or ferrite bead to filter the input. Also, consider using a shielded inductor and a low-ESR output capacitor to reduce radiated emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC34164D-5R2G Overview

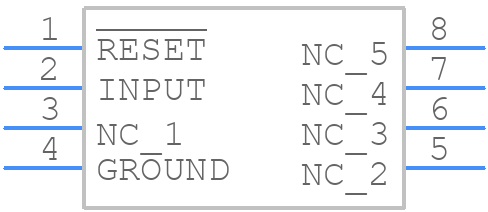

Use the download button to access the MC34164D-5R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC341,
or try a keyword search, such as Power Management Circuits
