Part Image

MC3423P1G - onsemi

Description: Obsolete - Power Factor Controller (PFC)

Download MC3423P1G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

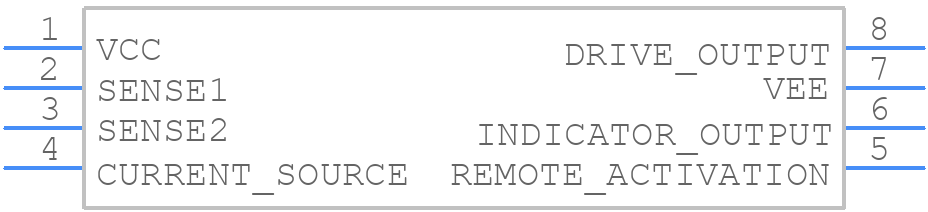

Symbol
MC3423P1G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC3423P1G - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP-8_1
click to zoom
3D Models
MC3423P1G - onsemi - 3D model - Dual-In-Line Packages - PDIP-8_1
click to zoom

MC3423P1G Details

  • Manufacturer Part Number:

    MC3423P1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    8 LEAD PDIP

  • Pin Count:

    8

  • Manufacturer Package Code:

    626-05

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    UNDER/OVERVOLTAGE SUPERVISOR

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.78 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MC3423P1G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
  • Use a heat sink with a thermal resistance of 10°C/W or lower, and ensure good airflow around the device. Also, consider derating the output current and voltage according to the datasheet.
  • Exceeding the maximum Tj rating can lead to reduced lifespan, decreased performance, and potential device failure. Ensure proper thermal management to stay within the recommended operating temperature range.
  • Yes, the MC3423P1G is suitable for high-reliability and automotive applications. However, ensure compliance with relevant industry standards (e.g., AEC-Q100) and perform thorough testing and validation.
  • Check the input voltage, output load, and feedback resistors. Verify that the device is properly configured and that the output capacitor is suitable for the application. Consult the datasheet and application notes for guidance.
