The recommended layout and placement for the MC34737 involves keeping the device away from high-current paths, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane is also recommended.
To optimize the MC34737 for low power consumption, use the lowest possible input voltage, enable the low-power mode, reduce the switching frequency, and minimize the output voltage ripple. Additionally, use a high-efficiency inductor and optimize the PCB layout to reduce losses.
The MC34737 can handle a maximum input voltage of 28V, but it's recommended to operate within the 7V to 18V range for optimal performance and reliability.
To troubleshoot the MC34737, start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the feedback loop is stable. Use an oscilloscope to check for voltage ripple, ringing, or oscillations. Consult the datasheet and application notes for specific troubleshooting guidelines.
The MC34737 is rated for operation up to 125°C, but it's recommended to derate the device for high-temperature applications. Consult the datasheet and application notes for specific guidelines on thermal management and derating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC34737 Overview

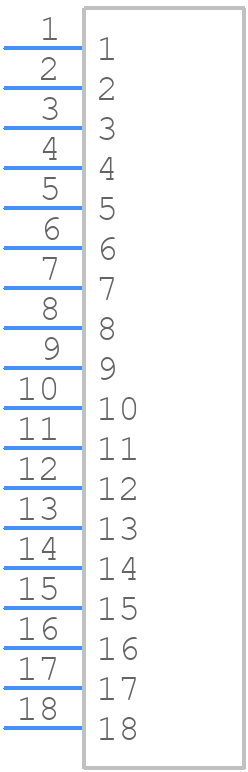

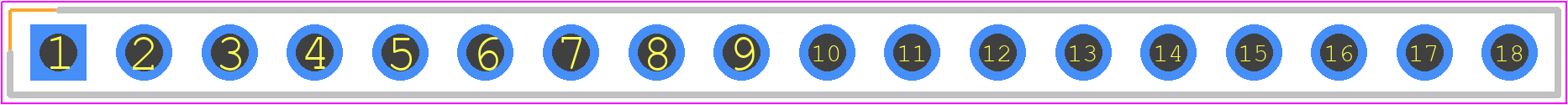

Use the download button to access the MC34737 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC347,
or try a keyword search, such as Headers and Edge Type Connectors
