The recommended layout and placement for the MC34757 involves keeping the device away from high-current paths, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane is also recommended.
To ensure proper power-up and initialization, apply power to the device in the correct sequence (VDD, then VBAT), and ensure that the input voltage is within the recommended range. Also, make sure to tie the EN pin high to enable the device.
The VBAT pin is used to connect a battery or a supercapacitor to store energy for the real-time clock (RTC) and other internal circuits. It should be connected to a battery or a supercapacitor with a recommended value of 1uF to 10uF.
To configure the MC34757 for low-power operation, set the Power Mode Control (PMC) register to the desired low-power mode, and ensure that the device is in a low-power state during idle periods. Additionally, consider using the device's built-in power gating feature to reduce power consumption.
The MC34757's I2C interface has limitations such as a maximum clock frequency of 400 kHz and a minimum clock high time of 600 ns. To optimize its performance, use a pull-up resistor on the SCL line, ensure proper signal termination, and avoid using long cables or traces.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC34757 Overview

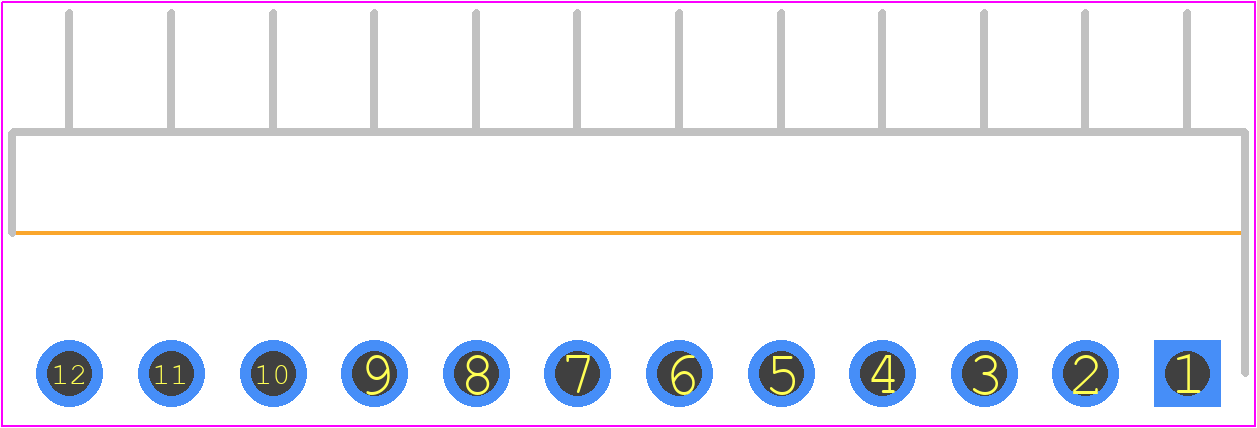

Use the download button to access the MC34757 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC347,
or try a keyword search, such as Headers and Edge Type Connectors
