- Part Number MC34931EK
- Manufacturer NXP
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - MC34931EK
- Released Date Sep 27, 2016
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC34931EK Details
-
Manufacturer Part Number:
MC34931EK
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
5
-
Analog IC - Other Type:
HALF BRIDGE BRUSH DC MOTOR CONTROLLER
-
JESD-30 Code:
R-PDSO-G32
MC34931EK Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane, decoupling capacitors, and a thermal pad connected to a heat sink is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation.
-
Use the device's power-down modes (e.g., shutdown, standby), optimize the clock frequency, and use the built-in voltage regulator to reduce power consumption. Additionally, consider using a low-dropout linear regulator for the analog supply.
-
Ensure a stable input voltage, use a low-ESR capacitor for the input filter, and consider using a ferrite bead or common-mode choke for EMI filtering. Also, ensure the power supply can handle the device's peak current requirements.
-
Verify the ADC clock frequency, ensure proper analog input signal conditioning, and check for noise and interference. Use the device's built-in diagnostic features, such as the ADC's built-in self-test, to identify issues.
-
Ensure good airflow, use a heat sink with a thermal interface material, and consider using a thermal pad or thermal tape. Monitor the device's temperature using the built-in thermal sensor and take corrective action if necessary.
Trust Checks
Community Provided
System Verified
Community Approved
MC34931EK Overview

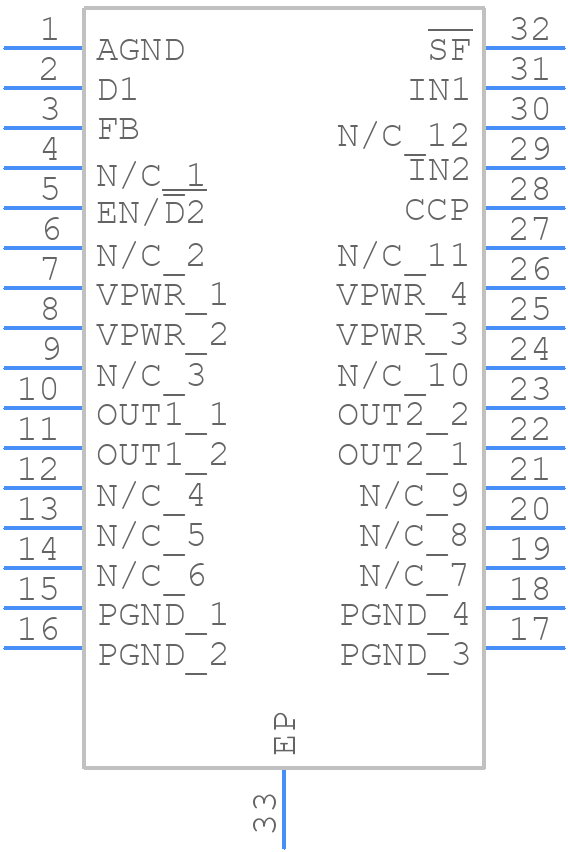

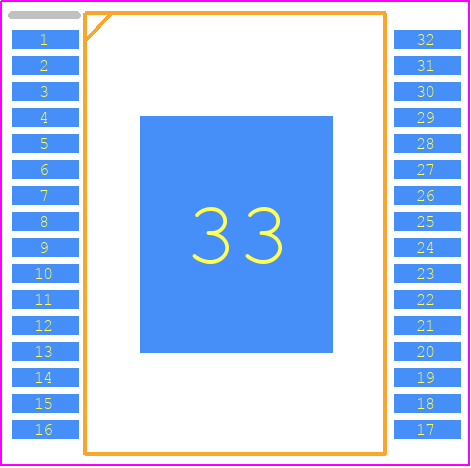

Use the download button to access the MC34931EK schematic symbol, PCB footprint, and 3D model.
