MC34PF1550A1EPR2 - NXP

Description: Power Management Specialized - PMIC Power Management IC 3 LDO Regs 40 QFN

Download MC34PF1550A1EPR2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

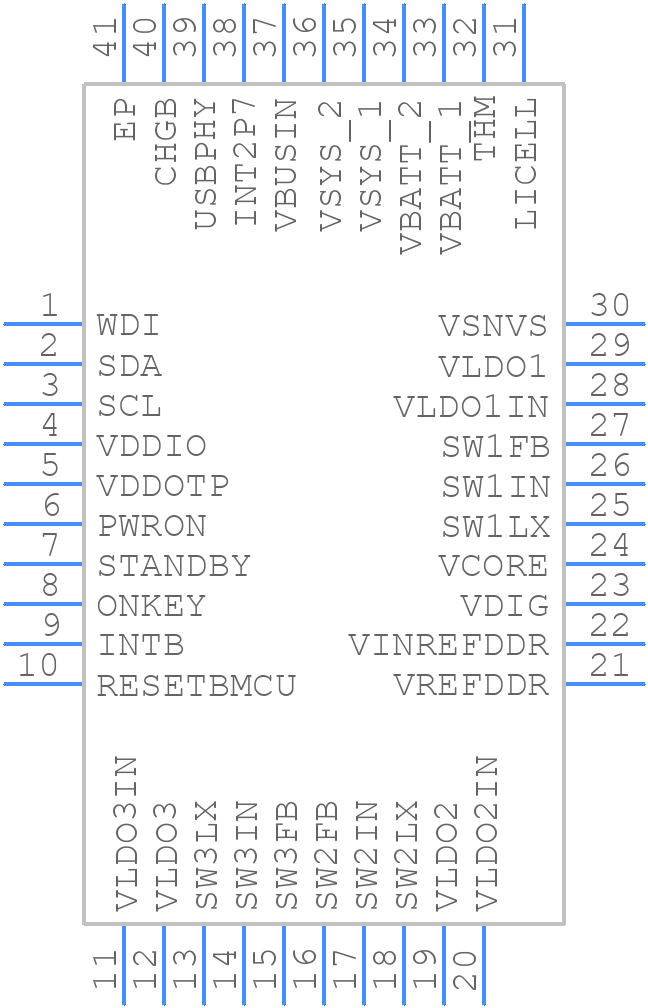

MC34PF1550A1EPR2 - NXP - PCB symbol
click to zoom
PCB Footprints
MC34PF1550A1EPR2 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40 QFN (SOT1369-4)
click to zoom
3D Models
MC34PF1550A1EPR2 - NXP - 3D model - Quad Flat No-Lead - 40 QFN (SOT1369-4)
click to zoom

MC34PF1550A1EPR2 Details

  • Manufacturer Part Number:

    MC34PF1550A1EPR2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +6.5V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

MC34PF1550A1EPR2 Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN5071, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The MC34PF1550A1EPR2 has a programmable output voltage feature. To configure the device for different output voltage settings, use the I2C interface to write the desired voltage value to the VOUT register. Refer to the datasheet section 10.3.1 for more information.
  • Although the datasheet specifies a maximum input voltage of 5.5V, NXP recommends limiting the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • The MC34PF1550A1EPR2 has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor and capacitor network, and configure the SCP threshold using the I2C interface. Refer to the datasheet section 10.3.2 for more information.
  • NXP provides a thermal derating curve in the datasheet, which shows the maximum allowed power dissipation versus ambient temperature. This curve helps designers ensure that the device operates within safe temperature limits.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
