MC35FS6500CAE - NXP

Description: Power Management Specialized - PMIC System Basis Chip, DCDC 0.8A Vcore CAN, Grade0, LQFP48EP

Download MC35FS6500CAE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

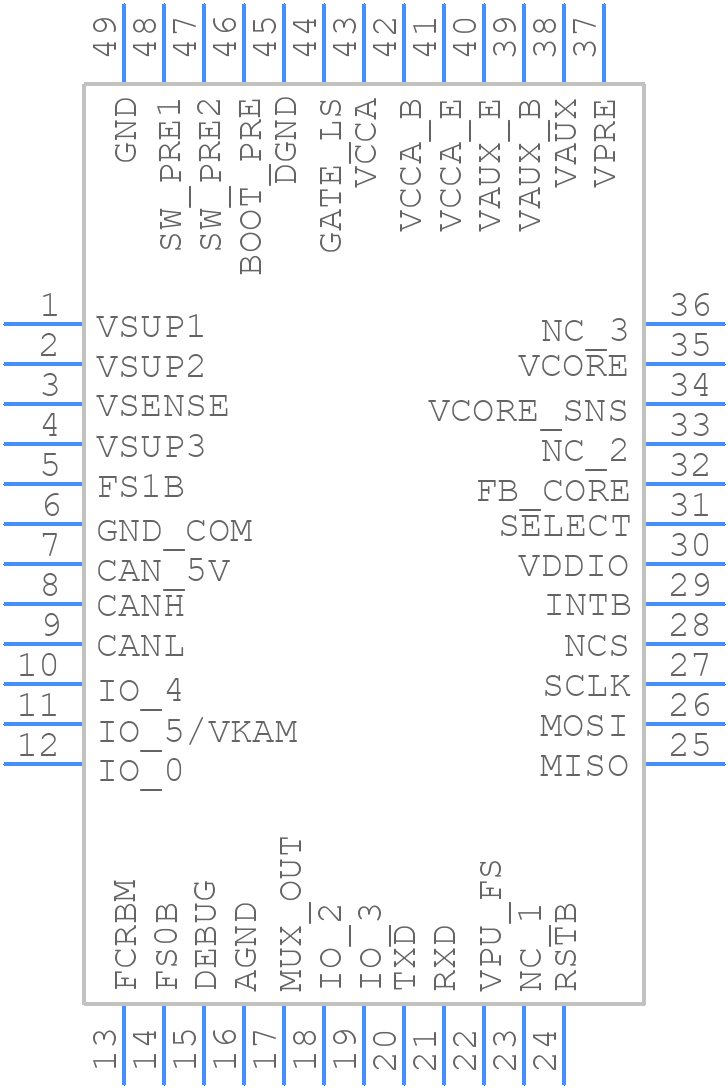

MC35FS6500CAE - NXP - PCB symbol
click to zoom
PCB Footprints
MC35FS6500CAE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - MC35FS6500CAE
click to zoom
3D Models
MC35FS6500CAE - NXP - 3D model - Quad Flat Packages - MC35FS6500CAE
click to zoom

MC35FS6500CAE Details

  • Manufacturer Part Number:

    MC35FS6500CAE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    HQFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Technology:

    SMARTMOS

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

MC35FS6500CAE Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the MC35FS6500CAE application note (AN11586). It's essential to follow the guidelines for component placement, routing, and grounding to ensure optimal performance, especially for high-frequency signals.
  • The MC35FS6500CAE has multiple operating modes, such as USB, UART, and SPI. Configuration is done through register settings, which are explained in the device's user manual (UM11585). Additionally, NXP provides example code and configuration files for different operating modes.
  • The MC35FS6500CAE has various power management options, including dynamic voltage scaling, clock gating, and power-down modes. These options can be controlled through register settings or using the device's built-in power management unit (PMU). Refer to the user manual for more information.
  • NXP provides a secure boot mechanism and firmware update process for the MC35FS6500CAE. This involves using the device's built-in security features, such as the Secure Boot Loader (SBL) and the Firmware Update Module (FUM). Refer to the security documentation (AN11587) and the user manual for implementation details.
  • The MC35FS6500CAE has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to follow proper thermal management practices, such as using thermal pads, heat sinks, and thermal interfaces. NXP provides thermal design guidelines in the device's package information document (PID).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC35FS6500CAE Overview

Use the download button to access the MC35FS6500CAE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC35F, or try a keyword search, such as Network Interfaces

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
