MC74AC273DWR2G - onsemi

Description: Buffered, Asynchronous Master Reset; Eight Edge-Triggered D Flip-Flops; See MC74AC373 for Transparent Latch Version; See MC74AC374 for 3-State Version; See MC74AC377 for Clock Enable Version; Buffered Common Clock; ACT273 Has TTL Compatible Inputs; Outputs Source/Sink 24 mA; Ideal Buffer for MOS Microprocessor or Memory; Pb-Free Packages are Available

Download MC74AC273DWR2G Model

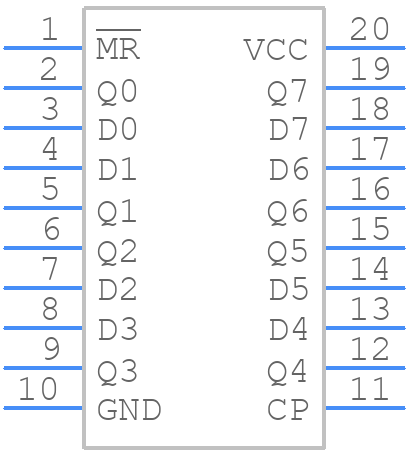

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74AC273DWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 20 WB CASE 751D-05
click to zoom
3D Models
MC74AC273DWR2G - onsemi  - 3D model - Small Outline Packages - SOIC 20 WB CASE 751D-05
click to zoom

MC74AC273DWR2G Details

  • Manufacturer Part Number:

    MC74AC273DWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-20 WB

  • Pin Count:

    20

  • Manufacturer Package Code:

    751D-05

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Family:

    AC

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    75000000 Hz

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    14.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.5 mm

  • fmax-Min:

    125 MHz

MC74AC273DWR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74AC273DWR2G is 2.0V to 6.0V.
  • To ensure that the output voltage of the MC74AC273DWR2G is within the specified range, make sure to operate the device within the recommended operating voltage range and maintain a stable power supply. Additionally, ensure that the output load is within the specified range and that the device is not overheating.
  • The maximum clock frequency that the MC74AC273DWR2G can handle is 100 MHz.
  • The asynchronous reset input (MR) of the MC74AC273DWR2G should be tied to VCC through a pull-up resistor to ensure that the device is not inadvertently reset. Additionally, ensure that the MR input is not left floating, as this can cause unpredictable behavior.
  • The maximum power dissipation of the MC74AC273DWR2G is 500 mW.
