MC74ACT139DG - onsemi

Description: Two Completely Independent 1-of-4 Decoders; Outputs Source/Sink 24 mA; Active LOW Mutually Exclusive Outputs; These devices are available in Pb-free package(s). Specifications herein apply to both standard and Pb-free devices. Please see our website at www.onsemi.com for specific Pb-free orderable part numbers, or contact your local ON Semiconductor sales office or representative.; Multifunction Capability; ACT139 Has TTL Compatible Inputs

Download MC74ACT139DG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

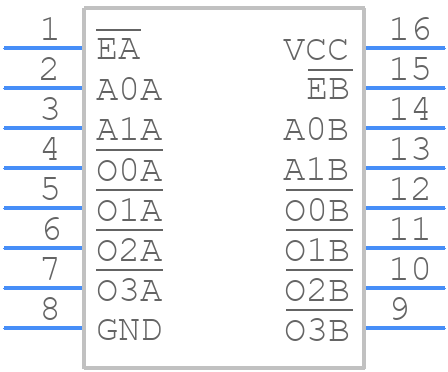

MC74ACT139DG - onsemi - PCB symbol
click to zoom
PCB Footprints
MC74ACT139DG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom
3D Models
MC74ACT139DG - onsemi - 3D model - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom

MC74ACT139DG Details

  • Manufacturer Part Number:

    MC74ACT139DG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5.4

  • JESD-609 Code:

    e3

  • Logic IC Type:

    2-LINE TO 4-LINE DECODER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MC74ACT139DG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74ACT139DG is 4.5V to 5.5V, although it can operate as low as 3.5V with reduced performance.
  • Unused inputs on the MC74ACT139DG should be tied to a logic level (VCC or GND) to prevent floating inputs, which can cause unpredictable behavior.
  • The maximum frequency of operation for the MC74ACT139DG is typically around 100 MHz, but this can vary depending on the specific application and operating conditions.
  • Proper thermal management for the MC74ACT139DG can be achieved by providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device.
  • Yes, the MC74ACT139DG is compatible with 3.3V logic, but it may require additional circuitry to ensure proper voltage translation and level shifting.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC74ACT139DG Overview

Use the download button to access the MC74ACT139DG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74A, or try a keyword search, such as Decoder/Drivers
