MC74HC147N - Motorola

Description: ENCODER, HC/UH SERIES, 9 BIT, CM

Download MC74HC147N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

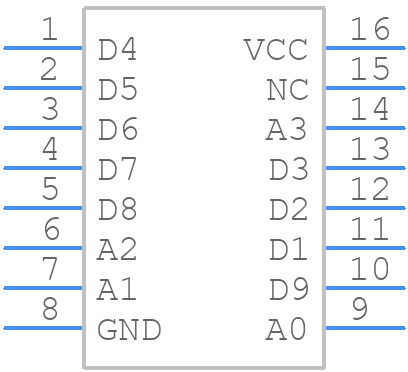

Symbol
MC74HC147N - Motorola - PCB symbol
click to zoom
PCB Footprints
MC74HC147N - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PLASTIC PACKAGE CASE 648–08
click to zoom
3D Models
MC74HC147N - Motorola - 3D model - Dual-In-Line Packages - PLASTIC PACKAGE CASE 648–08
click to zoom

MC74HC147N Details

  • Manufacturer Part Number:

    MC74HC147N

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP,

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Motorola Semiconductor Products

  • YTEOL:

    0

  • Additional Feature:

    9 TO 4 LINE PRIORITY ENCODER

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    20.07 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    ENCODER

  • Number of Bits:

    9

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power Supply Current-Max (ICC):

    50 mA

  • Propagation Delay (tpd):

    66 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.69 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MC74HC147N Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the MC74HC147N is 25 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure valid outputs, make sure to connect the enable input (EI) to a valid logic level, and ensure that the clock input (CLK) is a clean, stable signal. Also, add a small capacitor (e.g., 10nF) between the VCC and GND pins to filter out noise.
  • Yes, the MC74HC147N is designed to operate with a 2V to 6V power supply, so 5V is within the recommended operating range.
  • The MC74HC147N is a priority encoder, which means it will encode the highest-priority input (i.e., the input with the highest binary value). If multiple inputs are active simultaneously, the encoder will output the code corresponding to the highest-priority input.
  • The propagation delay of the MC74HC147N is typically around 20-30 ns, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC74HC147N Overview

Use the download button to access the MC74HC147N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74H, or try a keyword search, such as Arithmetic Circuits
