The recommended operating voltage range for the MC74HC174ADG is 2V to 6V.
To ensure that the output of the MC74HC174ADG is not affected by noise or glitches, it is recommended to use a bypass capacitor between the VCC pin and the GND pin, and to use a series resistor and capacitor at the output to filter out high-frequency noise.
The MC74HC174ADG is rated for operation up to 125°C, but it is recommended to derate the device for high-temperature operation. Consult the datasheet for specific derating guidelines.
The asynchronous reset input (MR) of the MC74HC174ADG should be tied to VCC through a pull-up resistor to ensure that the device is not inadvertently reset. A 1kΩ to 10kΩ pull-up resistor is recommended.
The maximum clock frequency that the MC74HC174ADG can handle is 25 MHz, but this may vary depending on the specific application and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC74HC174ADG Overview

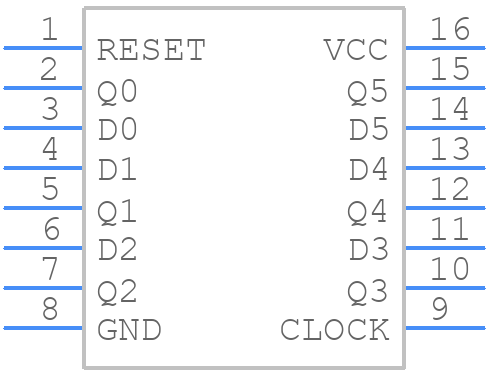

Use the download button to access the MC74HC174ADG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74H,
or try a keyword search, such as FF/Latches
