MC74HC259ADG - onsemi

Description: Obsolete - 8-Bit Addressable Latch 1-of-8 Decoder

Download MC74HC259ADG Model
Schematic

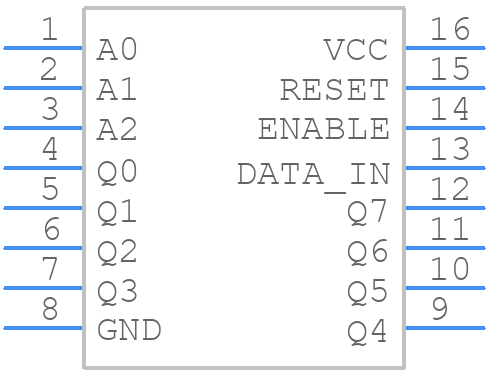

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74HC259ADG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom
3D Models
MC74HC259ADG - onsemi  - 3D model - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom

MC74HC259ADG Details

  • Manufacturer Part Number:

    MC74HC259ADG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC 16 LEAD

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D LATCH

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    42 ns

  • Propagation Delay (tpd):

    125 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    LOW LEVEL

  • Width:

    3.9 mm

MC74HC259ADG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74HC259ADG is 2V to 6V, with a typical voltage of 5V.
  • Unused inputs on the MC74HC259ADG should be tied to a logic level (either VCC or GND) to prevent floating inputs and ensure proper device operation.
  • The maximum clock frequency that the MC74HC259ADG can handle is 25 MHz, but this can vary depending on the specific application and operating conditions.
  • Yes, the MC74HC259ADG can be used in a 3.3V system, but the output voltage levels may not be as high as those in a 5V system, and the device's performance may be affected.
  • To ensure proper power-up and initialization, the MC74HC259ADG should be powered up with a slow ramp-up of the supply voltage (typically 10-20 ms) and the inputs should be held in a stable state during power-up.
