MC74HC4051ADWG - onsemi

Description: Low Crosstalk Between Switches; Fast Switching and Propagation Speeds; Chip Complexity: HC4051A - 184 FETs or 46 Equivalent Gates HC4052A - 168 FETs or 42 Equivalent Gates HC4053A - 156 FETs or 39 Equivalent Gates; Analog Power Supply Range (VCC - VEE ) = 2.0 to 12.0 V; In Compliance With the Requirements of JEDEC Standard No. 7A; Digital (Control) Power Supply Range (VCC - GND) = 2.0 to 6.0 V; Diode Protection on All Inputs/Outputs; Improved Linearity and Lower ON Resistance Than Metal-Gate Counterparts; L

Download MC74HC4051ADWG Model

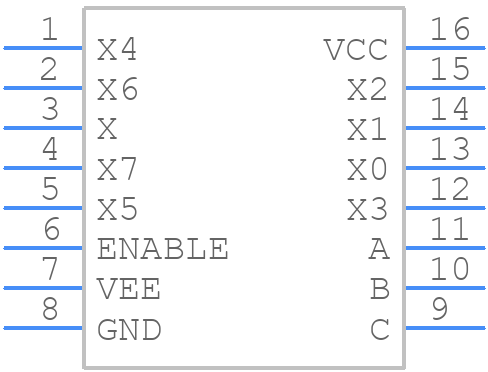

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74HC4051ADWG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 WB CASE 751G-03 ISSUE D
click to zoom
3D Models
MC74HC4051ADWG - onsemi  - 3D model - Small Outline Packages - SOIC-16 WB CASE 751G-03 ISSUE D
click to zoom

MC74HC4051ADWG Details

  • Manufacturer Part Number:

    MC74HC4051ADWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SO-16 WB

  • Pin Count:

    16

  • Manufacturer Package Code:

    751G-03

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES WITH 2V TO 12V (VCC-VEE) SUPPLY

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -4.5 V

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    40 dB

  • On-state Resistance Match-Nom:

    18 Ω

  • On-state Resistance-Max (Ron):

    170 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    76 ns

  • Switch-on Time-Max:

    83 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MC74HC4051ADWG Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the MC74HC4051ADWG is typically 10 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure proper power sequencing, it is recommended to power up the VCC pin before the analog signal inputs, and to power down the VCC pin after the analog signal inputs. This helps to prevent latch-up and ensures reliable operation.
  • The recommended operating voltage range for the MC74HC4051ADWG is 2.0 V to 6.0 V, with a typical operating voltage of 5.0 V.
  • To handle ESD protection, it is recommended to use ESD protection devices, such as TVS diodes or ESD protection arrays, on the input pins of the MC74HC4051ADWG. Additionally, proper PCB design and layout practices, such as using guard rings and minimizing trace lengths, can also help to reduce the risk of ESD damage.
  • The maximum analog signal voltage that can be applied to the MC74HC4051ADWG is typically VCC + 0.5 V, but it is recommended to limit the analog signal voltage to VCC or less to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC74HC4051ADWG Overview

Use the download button to access the MC74HC4051ADWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74H, or try a keyword search, such as Multiplexers or Switches

Parts related to MC74HC4051ADWG

Showing 0 results

MC74HC4051ADWG Alternates

Showing results

Image Part Number Model
Part Image 74VHC4051WMX Rochester Electronics LLC

8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, 0.300 INCH, MS-013, SOIC-16

Part Image 74VHC4051WMX Fairchild Semiconductor Corporation

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16

Part Image MM74HC4051WMX Fairchild Semiconductor Corporation

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16

Part Image MM74HC4051WM Fairchild Semiconductor Corporation

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16

Part Image MC74HC4051DW onsemi

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16

For a full list of alternate parts for MC74HC4051ADWG, check out Findchips.com
