MC74HC4052ADTR2G - onsemi

Description: Low Crosstalk Between Switches; Fast Switching and Propagation Speeds; Chip Complexity: HC4051A - 184 FETs or 46 Equivalent Gates HC4052A - 168 FETs or 42 Equivalent Gates HC4053A - 156 FETs or 39 Equivalent Gates; Analog Power Supply Range (VCC - VEE ) = 2.0 to 12.0 V; In Compliance With the Requirements of JEDEC Standard No. 7A; Digital (Control) Power Supply Range (VCC - GND) = 2.0 to 6.0 V; Diode Protection on All Inputs/Outputs; Improved Linearity and Lower ON Resistance Than Metal-Gate Counterparts; L

Download MC74HC4052ADTR2G Model

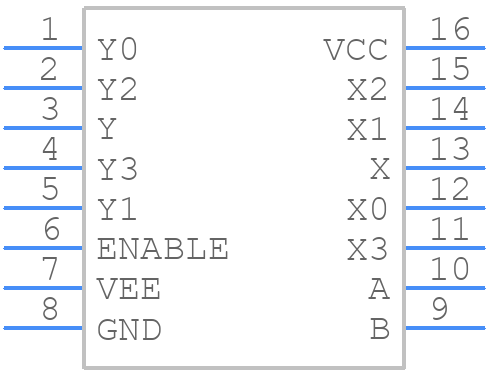

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74HC4052ADTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-16 CASE 948F ISSUE B
click to zoom
3D Models
MC74HC4052ADTR2G - onsemi  - 3D model - Small Outline Packages - TSSOP-16 CASE 948F ISSUE B
click to zoom

MC74HC4052ADTR2G Details

  • Manufacturer Part Number:

    MC74HC4052ADTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    948F-01

  • Country Of Origin:

    Mainland China, Malaysia, Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    ALSO OPERATES WITH 2V TO 12V (VCC-VEE) SUPPLY

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -4.5 V

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    40 dB

  • On-state Resistance Match-Nom:

    18 Ω

  • On-state Resistance-Max (Ron):

    170 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    76 ns

  • Switch-on Time-Max:

    83 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MC74HC4052ADTR2G Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MC74HC4052ADTR2G is 10 MHz.
  • To ensure signal integrity, use a low-impedance output driver, minimize trace lengths, and use a ground plane to reduce noise and electromagnetic interference (EMI).
  • The recommended power-on sequence is to apply VCC before applying any input signals, and to ensure that all inputs are at a valid logic level before applying VCC.
  • To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power dissipation for extended periods.
  • The recommended layout and routing involves keeping analog and digital traces separate, using a solid ground plane, and minimizing trace lengths and vias.
