MC74HC4060ADR2G-Q - onsemi

Description: Operating Voltage Range: 2 to 6 V; High Noise Immunity Characteristic of CMOS Devices; In Compliance With JEDEC Standard No. 7A Requirements; Chip Complexity: 390 FETs or 97.5 Equivalent Gates; Outputs Directly Interface to CMOS, NMOS, and TTL; Output Drive Capability: 10 LSTTL Loads; Low Input Current: 1 mA; Pb-Free Package is Available*

Download MC74HC4060ADR2G-Q Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MC74HC4060ADR2G-Q model

Email notifications will be applied after download.

Send part feedback

Symbol

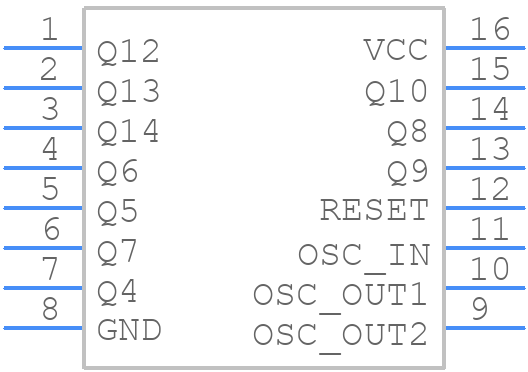

MC74HC4060ADR2G-Q - onsemi - PCB symbol

PCB Footprints

MC74HC4060ADR2G-Q - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 9.90x3.90x1.37 1.27P

3D Models

MC74HC4060ADR2G-Q - onsemi - 3D model - Small Outline Packages - SOIC−16 9.90x3.90x1.37 1.27P

Datasheet Download Datasheet
Stock & Prices Price & Stock for MC74HC4060ADR2G-Q
Part Number MC74HC4060ADR2G-Q
Manufacturer onsemi
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOIC−16 9.90x3.90x1.37 1.27P
Released Date Mar 31, 2026
Last Modified Date Mar 31, 2026 5:28 AM UTC
Pinout / Pin List Click Here (Member Only)

MC74HC4060ADR2G-Q Details

Manufacturer Part Number:
MC74HC4060ADR2G-Q
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
Logic IC Type:
BINARY COUNTER

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MC74HC4060ADR2G-Q Overview

Use the download button to access the MC74HC4060ADR2G-Q schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MC74H, or try a keyword search, such as Counters
