MC74HC4067ADWG - onsemi

Description: Fast Switching and Propagation Speeds; High ON/OFF Output Voltage Ratio; Low Crosstalk Between Switches; Diode Protection on All Inputs/Outputs; Wide PowerSupply Voltage Range (VCC-GND) = 2.0 to 6.0 V; Analog Input Voltage Range (VCC-GND) = 0 to 6.0 V; Improved Linearity and Lower ON Resistance over Input Voltage; Low Noise; These are PbFree Devices

Download MC74HC4067ADWG Model
Schematic

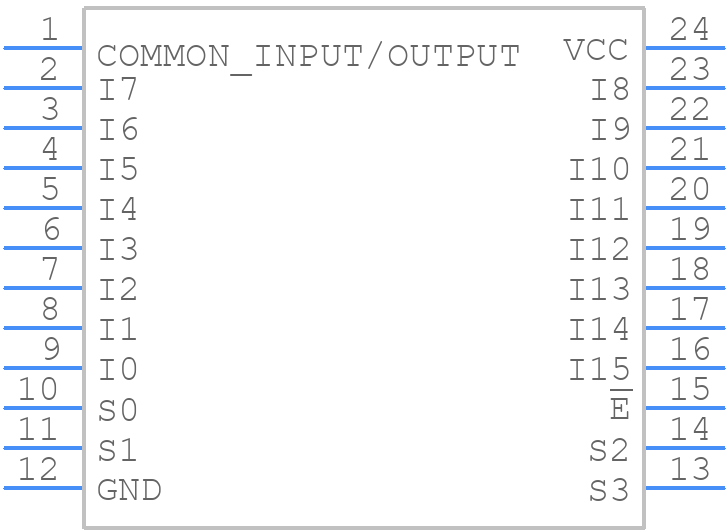

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74HC4067ADWG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-24 WB CASE 751E-04 ISSUE F
click to zoom
3D Models
MC74HC4067ADWG - onsemi  - 3D model - Small Outline Packages - SOIC-24 WB CASE 751E-04 ISSUE F
click to zoom

MC74HC4067ADWG Details

  • Manufacturer Part Number:

    MC74HC4067ADWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC−24 WB

  • Pin Count:

    24

  • Manufacturer Package Code:

    0.0751

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.395 mm

  • Moisture Sensitivity Level:

    3

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    65 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    160 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    435 ns

  • Switch-on Time-Max:

    23 ns

  • Switching:

    MAKE-BEFORE-BREAK

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MC74HC4067ADWG Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the MC74HC4067ADWG is typically around 10 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform simulations to determine the maximum frequency for a specific design.
  • To ensure proper power sequencing, it's recommended to power up the VCC pin before the signal inputs, and power down the VCC pin after the signal inputs. This helps prevent latch-up and ensures reliable operation. Additionally, it's recommended to use a power-on reset circuit to ensure the device is properly initialized.
  • The recommended operating voltage range for the MC74HC4067ADWG is 2.0 V to 6.0 V. Operating the device outside of this range may affect its performance, reliability, and lifespan.
  • To handle ESD protection, it's recommended to use ESD protection devices such as TVS diodes or ESD protection arrays on the input pins of the MC74HC4067ADWG. Additionally, it's recommended to follow proper PCB design and layout practices to minimize the risk of ESD damage.
  • The maximum current rating for the MC74HC4067ADWG is typically around 25 mA per channel. However, it's recommended to consult the datasheet and perform thermal calculations to determine the maximum current rating for a specific design.
