MC74HC541ADWR2G-Q - onsemi

Description: Output Drive Capability: 15 LSTTL Loads • Outputs Directly Interface to CMOS, NMOS and TTL • Operating Voltage Range: 2.0 to 6.0 V (HC), 4.5 to 5.5 V (HCT) • Low Input Current: 1 A • High Noise Immunity Characteristic of CMOS Devices • In Compliance With the JEDEC Standard No. 7 A Requirements • Chip Complexity: 134 FETs or 33.5 Equivalent Gates • −Q Suffix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable • These Devic

Download MC74HC541ADWR2G-Q Model

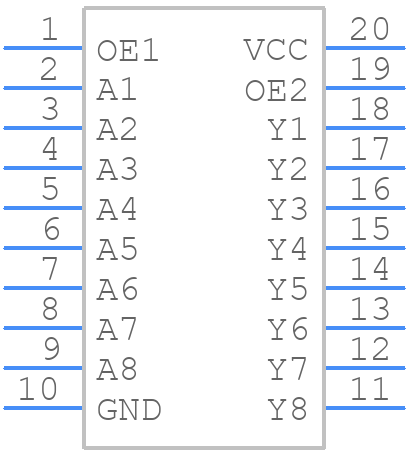

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74HC541ADWR2G-Q - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−20 WB CASE 751D−05 ISSUE H
click to zoom
3D Models
MC74HC541ADWR2G-Q - onsemi  - 3D model - Small Outline Packages - SOIC−20 WB CASE 751D−05 ISSUE H
click to zoom

MC74HC541ADWR2G-Q Details

  • Manufacturer Part Number:

    MC74HC541ADWR2G-Q

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.006 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    28 ns

  • Propagation Delay (tpd):

    165 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm
