MC74HC595AN - onsemi

Description: 8bitSIPO shift register,MC74HC595AN 2-6V

Download MC74HC595AN Model

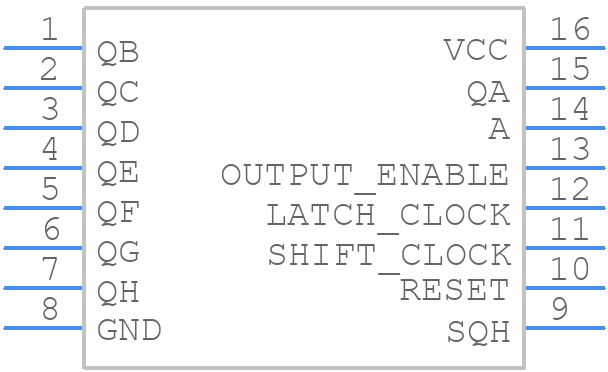

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74HC595AN - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - ---soic -16
click to zoom
3D Models
MC74HC595AN - onsemi  - 3D model - Small Outline Packages - ---soic -16
click to zoom

MC74HC595AN Details

  • Manufacturer Part Number:

    MC74HC595AN

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Count Direction:

    RIGHT

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.175 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    20000000 Hz

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    235

  • Power Supply Current-Max (ICC):

    75 mA

  • Propagation Delay (tpd):

    210 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.44 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.62 mm

  • fmax-Min:

    24 MHz

MC74HC595AN Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the MC74HC595AN is 25 MHz, but it can vary depending on the operating voltage and temperature.
  • To ensure that the output pins are in a known state during power-up, you can use an external pull-up or pull-down resistor on the OE (output enable) pin. This will ensure that the outputs are in a known state until the chip is fully powered up and configured.
  • The maximum current that the output pins of the MC74HC595AN can sink or source is 25 mA per pin. However, the total current drawn from the VCC pin should not exceed 70 mA.
  • To cascade multiple MC74HC595AN chips, connect the QH' (output) pin of one chip to the SER (serial input) pin of the next chip. This allows you to chain multiple chips together to increase the number of output pins.
  • The SRCLR pin is used to asynchronously reset the shift register and output latch. When the SRCLR pin is low, the shift register and output latch are reset, and all outputs are set to a low state.
