MC74HCT573AN - onsemi

MC74HCT573AN Details

• Manufacturer Part Number:

  MC74HCT573AN

• Part Life Cycle Code:

  Obsolete

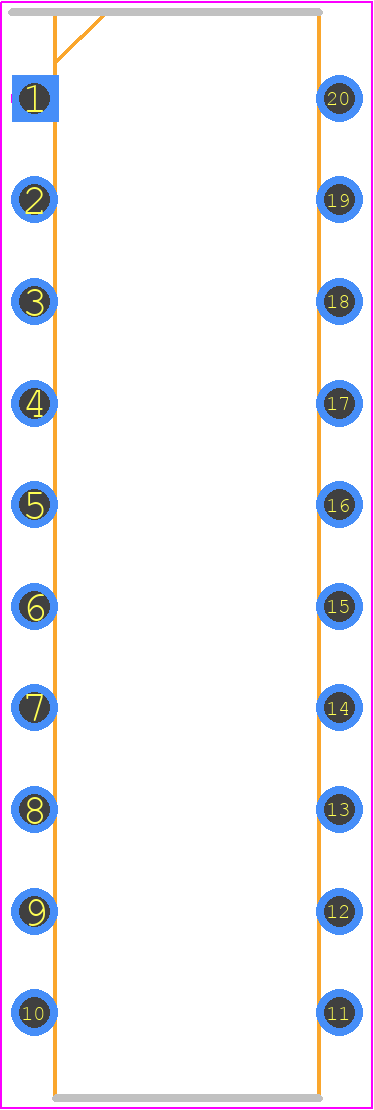

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-20

• Pin Count:

  20

• HTS Code:

  8542.39.00.60

• Manufacturer:

  onsemi

• YTEOL:

  0

• Control Type:

  ENABLE LOW

• Count Direction:

  UNIDIRECTIONAL

• Family:

  HCT

• JESD-30 Code:

  R-PDIP-T20

• JESD-609 Code:

  e0

• Length:

  26.415 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  BUS DRIVER

• Max I(ol):

  0.006 A

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  RAIL

• Peak Reflow Temperature (Cel):

  235

• Power Supply Current-Max (ICC):

  50 mA

• Prop. Delay@Nom-Sup:

  45 ns

• Propagation Delay (tpd):

  45 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
