MC74HCT595ADTR2G - onsemi

Description: Output Drive Capability: 15 LSTTL Loads; Outputs Directly Interface to CMOS, NMOS, and TTL; Operating Voltage Range: 4.5 to 5.5 V; Low Input Current: 1.0 uA; High Noise Immunity Characteristic of CMOS Devices; In Compliance with the Requirements Defined by JEDEC Standard No. 7A; Chip Complexity: 328 FETs or 82 Equivalent Gates

Download MC74HCT595ADTR2G Model

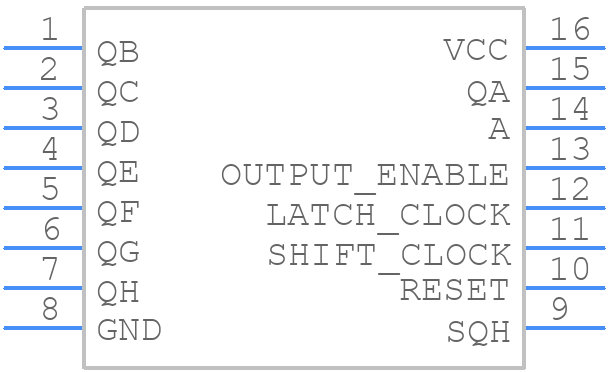

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74HCT595ADTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-16 CASE 948F ISSUE B
click to zoom
3D Models
MC74HCT595ADTR2G - onsemi  - 3D model - Small Outline Packages - TSSOP-16 CASE 948F ISSUE B
click to zoom

MC74HCT595ADTR2G Details

  • Manufacturer Part Number:

    MC74HCT595ADTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    948F-01

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.45

  • Count Direction:

    RIGHT

  • Family:

    HCT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    20000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    75 mA

  • Propagation Delay (tpd):

    28 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    4.4 mm

  • fmax-Min:

    24 MHz

MC74HCT595ADTR2G Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the MC74HCT595ADTR2G is 30 MHz.
  • Yes, the MC74HCT595ADTR2G is compatible with 4.5V to 5.5V power supplies.
  • To ensure that the output signals are not distorted or skewed, it is recommended to use a low-impedance output driver and to keep the output traces as short as possible.
  • The MC74HCT595ADTR2G can sink or source up to 25mA per output pin.
  • The MC74HCT595ADTR2G is rated for operation from -40°C to 125°C, but it is recommended to derate the device for high-temperature operation.
