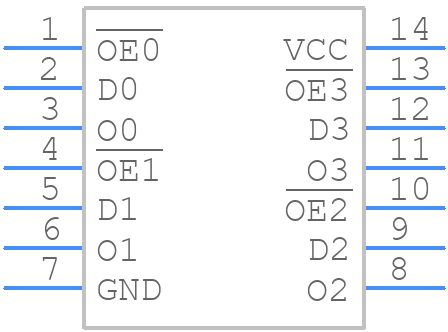

MC74LCX125DG - onsemi

MC74LCX125DG Details

• Manufacturer Part Number:

  MC74LCX125DG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC-14 NB

• Package Description:

  SOIC-14

• Pin Count:

  14

• Manufacturer Package Code:

  751A-03

• Country Of Origin:

  Mainland China, Philippines, Thailand

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  9 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  6

• Control Type:

  ENABLE LOW

• Family:

  LVC/LCX/Z

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e3

• Length:

  8.65 mm

• Logic IC Type:

  BUS DRIVER

• Max I(ol):

  0.024 A

• Moisture Sensitivity Level:

  1

• Number of Bits:

  1

• Number of Functions:

  4

• Number of Ports:

  2

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  RAIL

• Peak Reflow Temperature (Cel):

  260

• Prop. Delay@Nom-Sup:

  6 ns

• Propagation Delay (tpd):

  7.2 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm
