MC74LCX373DTR2G-Q footprint, schematic symbol and 3D model by onsemi

MC74LCX373DTR2G-Q - onsemi

Description: IOFF Specification Guarantees High Impedance When VCC = 0V; Latchup Performance Exceeds 500mA; Near Zero Static Supply Current in All Three Logic States (10µA) Substantially Reduces System Power Requirements; LVTTL Compatible; 5V Tolerant Interface Capability With 5V TTL Logic; 24mA Balanced Output Sink and Source Capability; Designed for 2.3 to 3.6V VCC Operation; ESD Performance: Human Body Model >2000V; Machine Model >200V; LVCMOS Compatible; Supports Live Insertion and Withdrawal; Pb-Free Packages are A

Download MC74LCX373DTR2G-Q Model

Schematic
symbols

PCB
footprints

3D
models

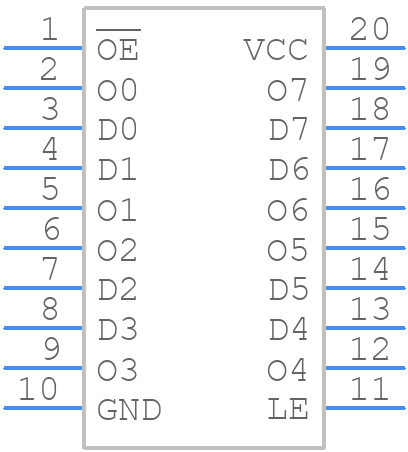

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MC74LCX373DTR2G-Q
Part Number MC74LCX373DTR2G-Q
Manufacturer onsemi
Pin Count 20
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - TSSOP−20 WB CASE 948E ISSUE D
Released Date Jul 30, 2026
Last Modified Date Jul 30, 2026 3:32 AM UTC
Pinout / Pin List Click Here (Member Only)

MC74LCX373DTR2G-Q Details

Manufacturer Part Number:
MC74LCX373DTR2G-Q
Manufacturer:
onsemi

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MC74LCX373DTR2G-Q Overview

Use the download button to access the MC74LCX373DTR2G-Q schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MC74L, or try a keyword search, such as Bus Driver/Transceivers
