MC74LVX50DTG - onsemi

Description: Balanced Propagation Delays; Designed for 2 V to 3.6 V Operating Range; High Speed: tPD = 4.1ns (Typ) at VCC = 3.3V; High Noise Immunity: VNIH = VNIL = 28% VCC; Power Down Protection Provided on Inputs; Low Power Dissipation: ICC = 2µA (Max) at TA = 25°C; Low Noise: VOLP = 0.5 V (Max); Pb-Free Packages are Available*

Download MC74LVX50DTG Model

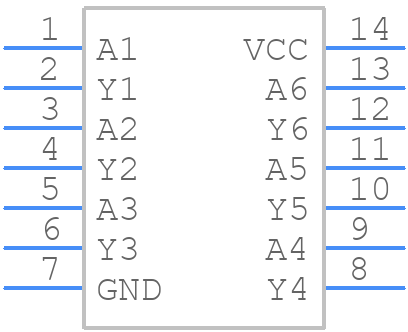

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74LVX50DTG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 948G
click to zoom
3D Models
MC74LVX50DTG - onsemi  - 3D model - Small Outline Packages - 948G
click to zoom

MC74LVX50DTG Details

  • Manufacturer Part Number:

    MC74LVX50DTG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.85

  • Family:

    LV/LV-A/LVX/H

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUFFER

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    11.5 ns

  • Propagation Delay (tpd):

    16 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MC74LVX50DTG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74LVX50DTG is 2.7V to 3.6V.
  • No, the MC74LVX50DTG is not compatible with 5V logic. It is designed to operate at lower voltages (2.7V to 3.6V) and may not function correctly or may be damaged if operated at 5V.
  • The maximum clock frequency supported by the MC74LVX50DTG is 100 MHz.
  • Yes, the MC74LVX50DTG has built-in ESD protection to protect the device from electrostatic discharge.
  • The MC74LVX50DTG is available in a TSSOP-14 package.
