MC74LVXT4051DR2G - onsemi

Description: Designed to Operate on a Single Supply with VEE = GND, or UsingSplit Supplies up to +/- 3.0 V; Low Noise; Fast Switching and Propagation Speeds; Improved Linearity and Lower ON Resistance than Metal-Gate, HSL, or VHC Counterparts; Digital (Control) Power Supply Range (VCC - GND) = 2.5 to 6.0 V; Analog Power Supply Range (VCC - VEE) = -3.0 V to +3.0 V; Low Crosstalk Between Switches; Select Pins Compatible with TTL Levels; Break-Before-Make Circuitry; Pb-Free Packages are Available*

Download MC74LVXT4051DR2G Model

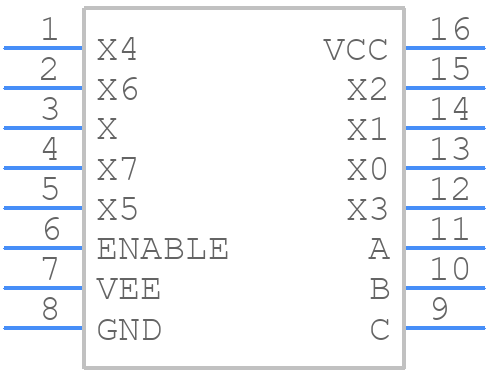

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74LVXT4051DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom
3D Models
MC74LVXT4051DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom

MC74LVXT4051DR2G Details

  • Manufacturer Part Number:

    MC74LVXT4051DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.15

  • JESD-609 Code:

    e3

  • Logic IC Type:

    MULTIPLEXER AND DEMUX/DECODER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MC74LVXT4051DR2G Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MC74LVXT4051DR2G is 30 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure signal integrity, use proper PCB layout techniques, such as minimizing trace length and impedance, using termination resistors, and avoiding signal reflections. Additionally, use a low-ESR capacitor for power supply decoupling.
  • The recommended power-up sequence is to apply VCC first, followed by the control signals (S0, S1, and S2). This ensures that the device is properly initialized and minimizes the risk of latch-up or incorrect operation.
  • Yes, the MC74LVXT4051DR2G is compatible with 3.3V systems. However, ensure that the input signals are within the recommended voltage range (VCC - 0.5V to VCC + 0.5V) to maintain proper operation.
  • The MC74LVXT4051DR2G has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and follow proper PCB thermal design guidelines to prevent overheating.
