The recommended operating voltage range for the MC74LVXT4052DR2G is 1.65V to 3.6V.
To ensure signal integrity, use a low-impedance PCB layout, keep signal traces short, and use termination resistors as needed. Also, consider using a signal integrity analysis tool to simulate and optimize your design.
While the MC74LVXT4052DR2G is rated for 1.65V to 3.6V operation, it can tolerate 5V inputs with some limitations. However, it's not recommended to operate the device at 5V continuously, as it may affect its reliability and lifespan.
To ensure proper operation, power up the VCC pin before applying any input signals, and power down the VCC pin after removing all input signals. Also, consider using a power sequencing controller or a voltage supervisor to manage power-up and power-down sequences.
The maximum operating frequency of the MC74LVXT4052DR2G is 250 MHz, but this can vary depending on the specific application, PCB layout, and signal integrity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC74LVXT4052DR2G Overview

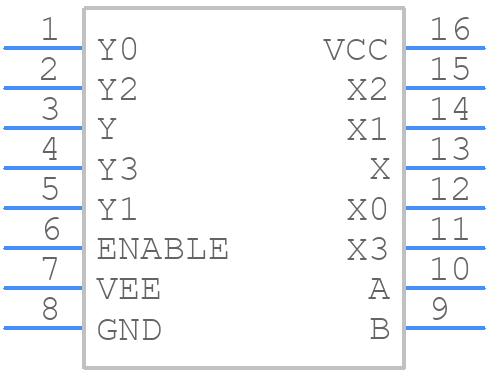

Use the download button to access the MC74LVXT4052DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74L,
or try a keyword search, such as Multiplexer/Demultiplexers
