MC74VHCT08ADR2G - onsemi

Description: High Speed: tPD = 4.3ns (Typ) at VCC = 5V; Pin and Function Compatible with Other Standard Logic Families; Power Down Protection Provided on Inputs; Chip Complexity: 24 FETs or 6 Equivalent Gates; Balanced Propagation Delays; Low Noise: VOLP = 0.8V (Max); Low Power Dissipation: ICC = 2mA (Max) at TA = 25°C; TTL-Compatible Inputs: VIL = 0.8V; VIH = 2.0V; Designed for 2V to 5.5V Operating Range; ESD Performance: HBM > 2000V; Machine Model > 200 V; Latchup Performance Exceeds 300 mA; Pb-Free Packages are Avail

Download MC74VHCT08ADR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC74VHCT08ADR2G - onsemi - PCB symbol
click to zoom
PCB Footprints

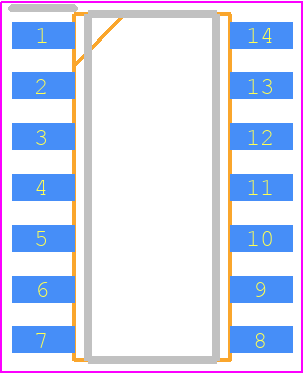

MC74VHCT08ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14
click to zoom
3D Models
MC74VHCT08ADR2G - onsemi - 3D model - Small Outline Packages - SOIC-14
click to zoom

MC74VHCT08ADR2G Details

  • Manufacturer Part Number:

    MC74VHCT08ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    6.45

  • Family:

    AHCT/VHCT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    AND GATE

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    9 ns

  • Propagation Delay (tpd):

    14 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC74VHCT08ADR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74VHCT08ADR2G is 4.5V to 5.5V.
  • Yes, the MC74VHCT08ADR2G is compatible with 3.3V logic, but it is not recommended to operate it at 3.3V as it is a 5V part. However, it can tolerate 3.3V input levels.
  • The maximum frequency of operation for the MC74VHCT08ADR2G is typically around 100 MHz, but it can vary depending on the specific application and operating conditions.
  • No, the MC74VHCT08ADR2G does not have built-in pull-up resistors. External pull-up resistors may be required depending on the application.
  • Yes, the MC74VHCT08ADR2G is available in a lead-free package, which is RoHS compliant.
