MC908JL16CSPE - NXP

MC908JL16CSPE Details

• Manufacturer Part Number:

  MC908JL16CSPE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

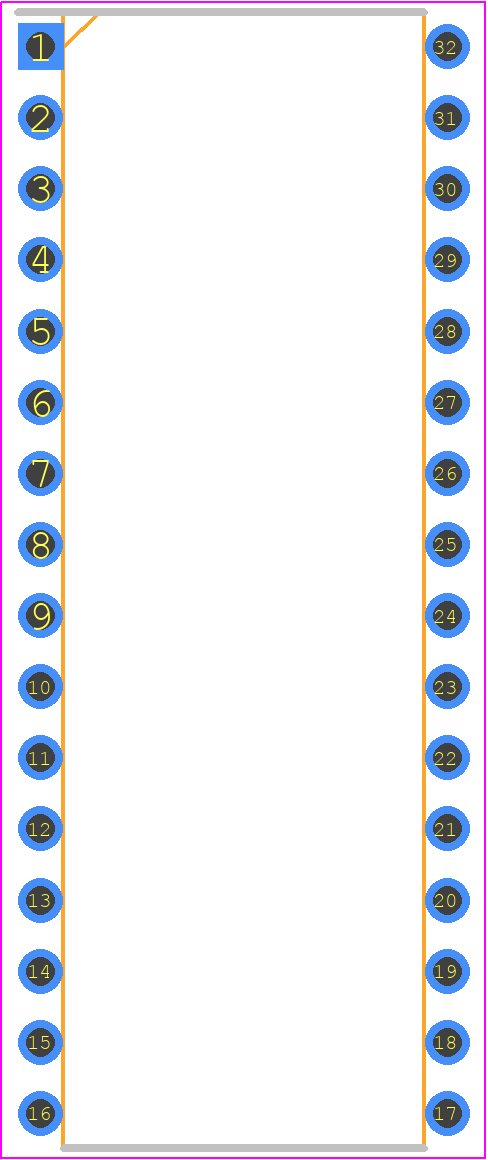

• Package Description:

  SDIP-32

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.15

• Date Of Intro:

  2016-08-12

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Has ADC:

  YES

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  M68HC08

• Clock Frequency-Max:

  32 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDIP-T32

• Length:

  28.1 mm

• Low Power Mode:

  YES

• Number of External Interrupts:

  1

• Number of I/O Lines:

  26

• Number of Serial I/Os:

  1

• Number of Terminals:

  32

• Number of Timers:

  4

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP32,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• RAM (bytes):

  512

• ROM (words):

  16384

• ROM Programmability:

  FLASH

• Seated Height-Max:

  4.9 mm

• Speed:

  8 MHz

• Supply Current-Max:

  18 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.778 mm

• Terminal Position:

  DUAL

• Width:

  10.16 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
