MC908LJ12CFBE footprint, schematic symbol and 3D model by NXP

Symbol

click to zoom

PCB Footprints

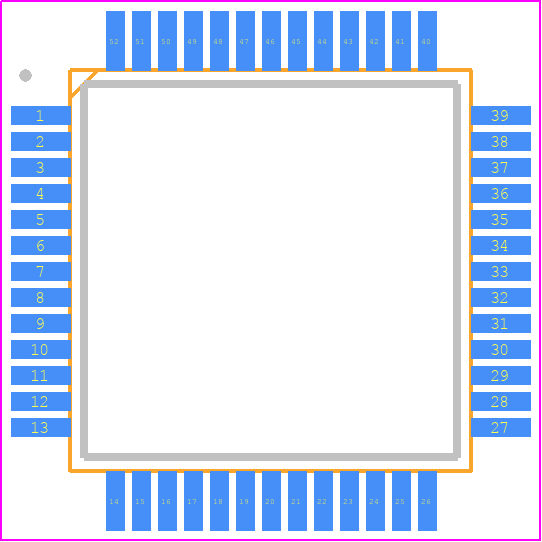

MC908LJ12CFBE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - 52-Pin LQFP

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MC908LJ12CFBE
Part Number MC908LJ12CFBE
Manufacturer NXP
Pin Count 52
Part Category Integrated Circuit
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - 52-Pin LQFP
Released Date Jun 3, 2026
Last Modified Date Jun 3, 2026 4:23 AM UTC
Pinout / Pin List Click Here (Member Only)

MC908LJ12CFBE Details

Manufacturer Part Number:
MC908LJ12CFBE
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Country Of Origin:
Mainland China, Malaysia
ECCN Code:
EAR99
HTS Code:
8542.31.00.01
Factory Lead Time:
13 Weeks
Manufacturer:
NXP Semiconductors
YTEOL:
3
Bit Size:
8
CPU Family:
68HC08
JESD-30 Code:
S-PQFP-G52
JESD-609 Code:
e3
Moisture Sensitivity Level:
3
Number of Terminals:
52
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
QFP
Package Equivalence Code:
QFP52,.47SQ
Package Shape:
SQUARE
Package Style:
FLATPACK
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
RAM (bytes):
512
ROM (words):
12288
ROM Programmability:
FLASH
Speed:
8 MHz
Supply Current-Max:
18 mA
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
40

MC908LJ12CFBE Frequently Asked Questions (FAQs)

The maximum clock frequency that can be used with the internal oscillator is 4 MHz. However, it's recommended to use a crystal oscillator for more accurate and stable clock signals.
The watchdog timer can be configured using the WDTCSR register. Set the WDTON bit to enable the watchdog timer, and set the WDP bits to select the timeout period. You can also use the WDTCSR register to clear the watchdog timer.
The BPROT fuse is used to protect the boot loader section of the flash memory from accidental writes. When the BPROT fuse is programmed, the boot loader section is protected, and any attempts to write to it will be ignored.
The ADC on the MC908LJ12CFBE is a 10-bit successive approximation ADC. To use it, configure the ADC control register (ADCCFG) to select the input channel, set the ADC clock, and enable the ADC. Then, start the conversion by setting the ADCCFG register, and wait for the conversion to complete. The result can be read from the ADC data register (ADC_DR).
The maximum current that can be sourced or sunk by the GPIO pins is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation.

Trust Checks

Community Provided

System Verified

Community Approved

MC908LJ12CFBE Overview

Use the download button to access the MC908LJ12CFBE schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MC908, or try a keyword search, such as Microcontrollers
